60m Distance Sensor
Long Distance Sensor Model: MB2D62(k230327-9)
Measuring Range (without Reflection): 0.03-60m
Measuring frequency: 20Hz
Laser Class: Class II
Laser Type: 620~690nm, <1mW
Size: 45*25*12mm
Weight: About 10g
Voltage: DC 2.5~3.3V
Storage Temperature: -25~60 ℃
JRT MB2D62 can provide you the most special measuring feelings. It has the long distance rang 0.03-60M (without reflection|), with 20HZ high frequency, can give you date in 0.05-4 Seconds.Also,MB2D62 normal operating temperature is 0-40 ℃ (32-104℉),if you need other extra working temperature, please tell us then we can customized for you.Let's start it, make every measurment simple.

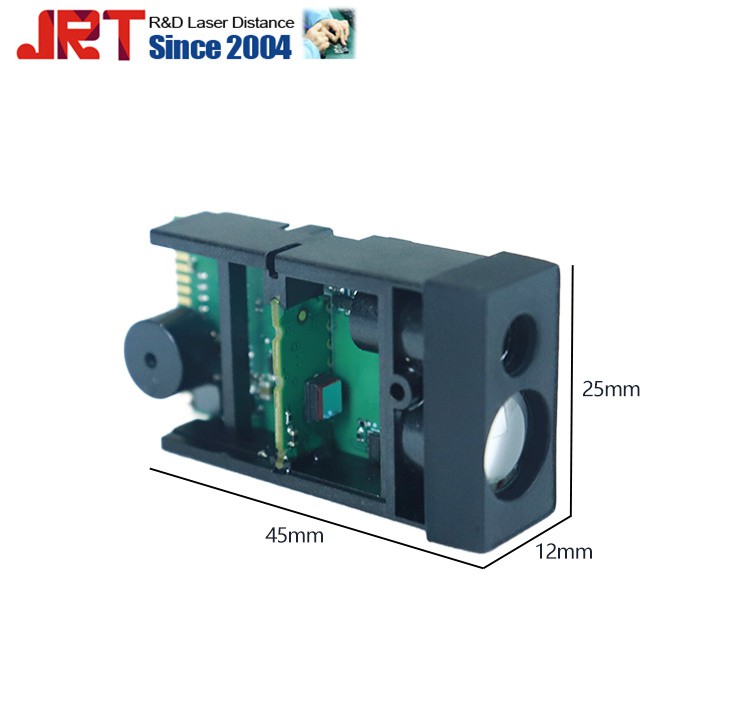

60m Long Distance Rangefinder Size：
This product is compact in structure, small in size, light in weight, stable in performance, easy to use, support a variety of communication protocols on the market, with high sensitivity, accurate temperature measurement, flexible control and so on.
60m Laser Sensor Module Lens Size:
60m Laser Sensor Module Basic Parameter:
Distance Module Model: MB2D62(k230327-9)
Resolution: 1 mm
Measuring accuracy: ±1mm~±2mm
Unit: Millimeter of measurement
Measuring range: 0.03-60m
Single measurement time: 0.04 ~ 4 seconds
Laser class: class II
Laser type: 620nm ~ 690nm, <1mW
Dimensions: 45*25*12mm
Weighs: about 9g
Voltage: DC 2.5-3.3V
Output: TTL, USB, RS-232,RS-485, Bluetooth
Frequency: 3Hz
Operating temperature: 0 ~ 40℃
Storage temperature -25 ~ 60℃
60m Laser Sensor Module Application Area:
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
For more info, please feel free to contact us
