1535nm Infrared Ranging Sensor 3000m

The ETYS-30X Infrared Ranging Sensor 3000m is a high-performance laser rangefinder module with a working wavelength of 1535nm and a maximum ranging capability of up to 3000 meters.
This ranging sensor is commonly used in professional fields such as total stations, golf, surveying, meteorology, and scientific research. If you need two samples for testing, please contact us: jane.l@jrt-measure.com.

Below, I will provide a detailed analysis of its key features and applications, hope can help you:

Key Features:
1. Eye-safe wavelength: 1535nm belongs to the mid-infrared band.
2. High precision and long range: Pulsed laser ranging technology with meter-level accuracy.
3. Strong anti-interference ability: Can be used in harsh weather conditions such as fog and haze.
4. High technical complexity: Requires a high-power laser (such as an Er:Glass laser).

Typical Application Scenarios:
Topographic surveying: Airborne or vehicle-mounted LiDAR for 3D terrain modeling.
Meteorological monitoring: Measuring cloud height and aerosol distribution.
Industrial safety: Deformation monitoring of large structures (such as bridges and tower cranes).
Scientific research experiments: Atmospheric transmission characteristics research, laser radar system integration.

Performance
1 Operating Wavelength: 1535nm ± 5nm
2 Emission Aperture: Φ8mm
3 Receiving Aperture: Φ16mm
4 Divergence Angle: ≤ 0.65mrad
5 Ranging Capability: ≥ 3000m (2.3m × 4.6m target board or vehicle, relative humidity ≤ 60%, visibility ≥ 8Km)
6 Ranging Blind Zone: ≤ 15m
7 Ranging Accuracy: ≤ ±1m
8 Accuracy Rate: ≥ 98%
9 False Alarm Rate: ≤ 2%
10 Ranging Frequency: Single shot, 1Hz - 10Hz
11 Weight: ≤ 34g

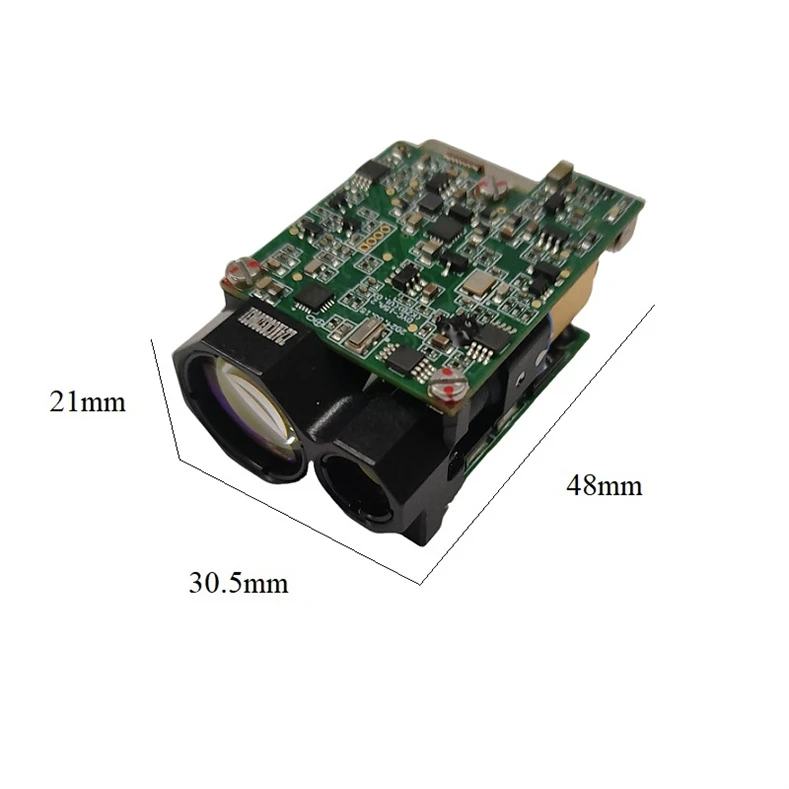

12 Dimensions: ≤ 48mm × 30.5mm × 21mm
13 Electrical Interface: Changjiang Connector: A1257WR-S-6P
14 Power Supply Voltage: 4.5V - 16V
15 Standby Power Consumption: ≤ 0.5W
16 Working Power Consumption: ≤ 1W @ 1Hz
17 Operating Temperature: -40℃ - +60℃
18 Storage Temperature: -55℃ - +70℃
