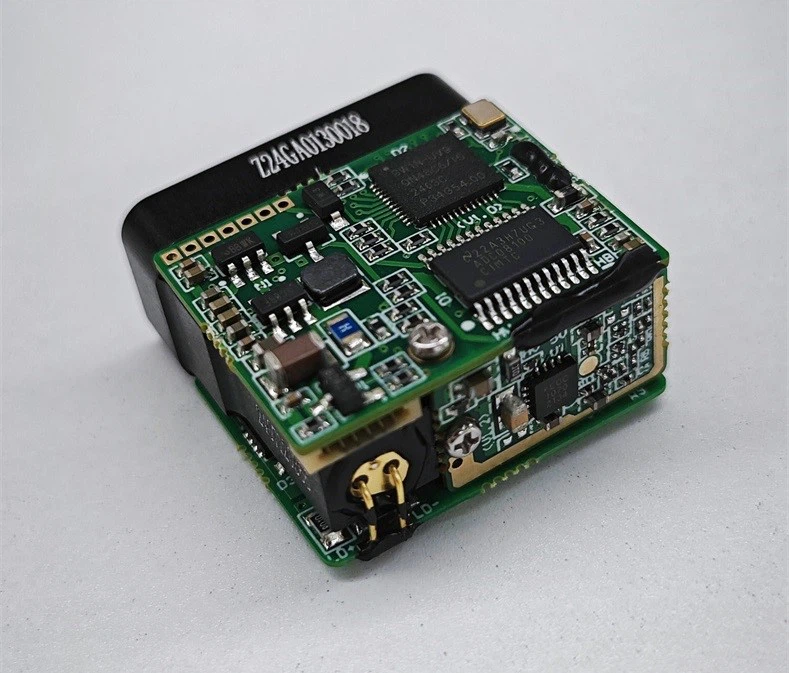

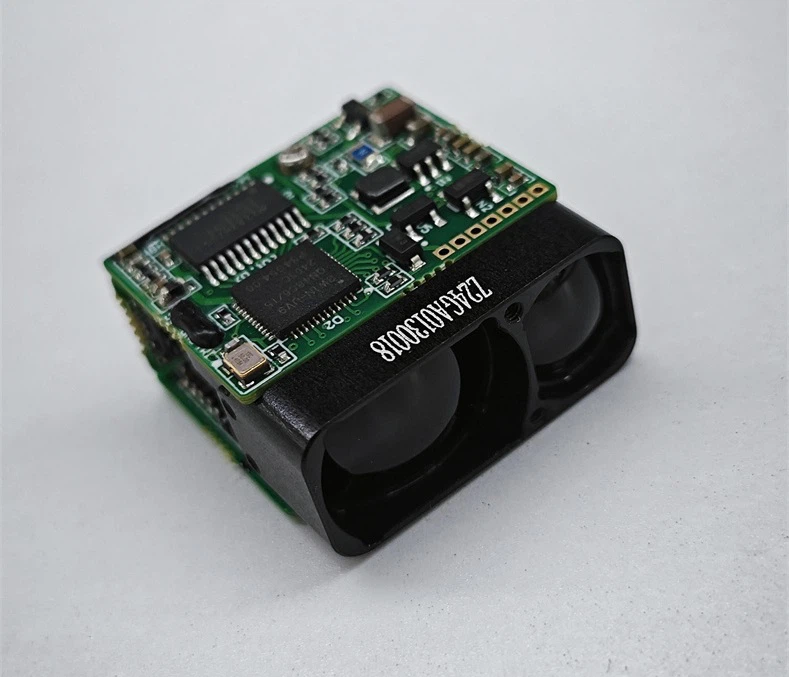

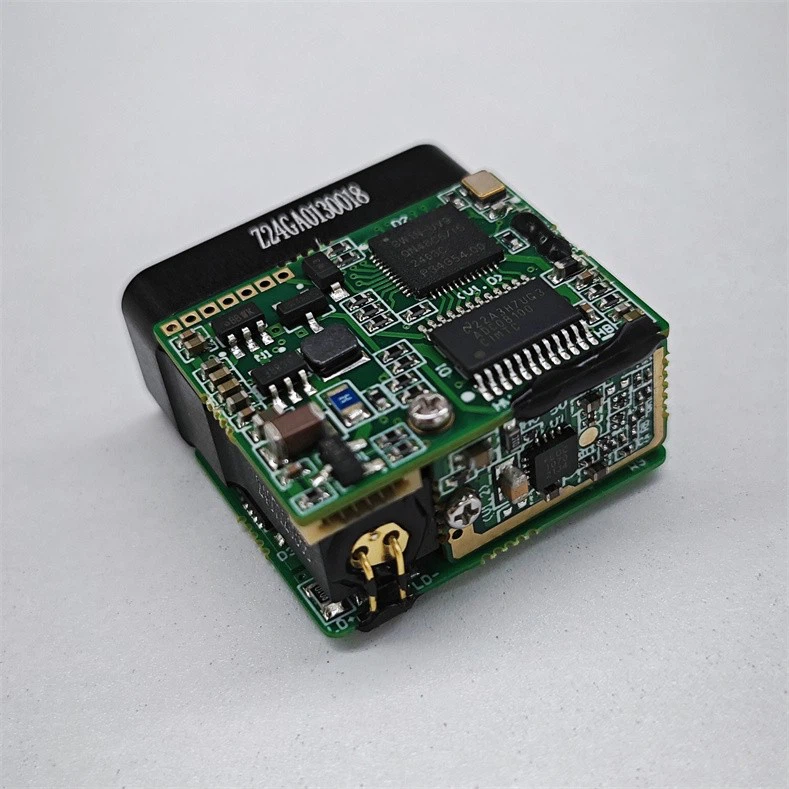

JRT's PTFS-1500 laser sensor distance measurement is new product of using time-of-flight principle to measure distances from 5m(16.4 feet) to 1500m (about 4921 feet). This 1500m infrared sensor for distance measurement is a long-range, non-contact measuring sensor good for UAV/drone, photoelectric pod, gun vision night vision, thermal image, etc. industrial applications. With 905nm eye-safe laser & small size, the infrared measurement module can be integrated easily. If you are interested in getting a quote of this product, please contact us.

Measuring range: 5m ~ 1500m(target: large target, visibility: ≥15km. Target reflection coefficient: 0.3)
Measuring accuracy: ≤1m
Measuring frequency: 1Hz/2Hz
Laser wavelength: 905nm±5nm

Environmental conditions
Working temperature: -20℃ ~ +60℃
Storage temperature: -30℃ ~ +60℃

Electrical & Power
Power supply voltage: 3V ~ 5V
Power consumption ≤2W

Mechanical
Weight: ≤10g±0.5g, about 8g

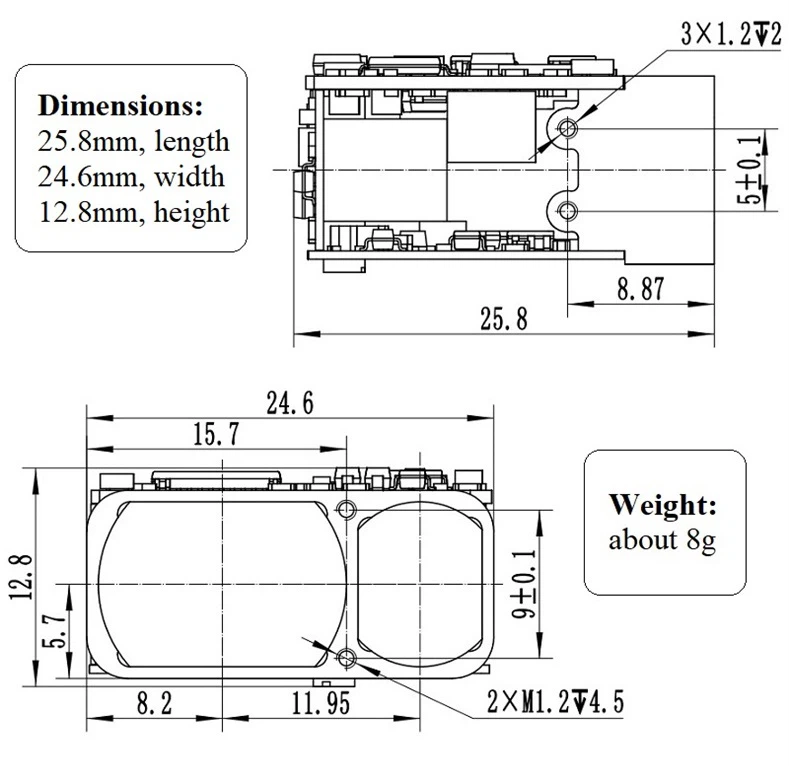

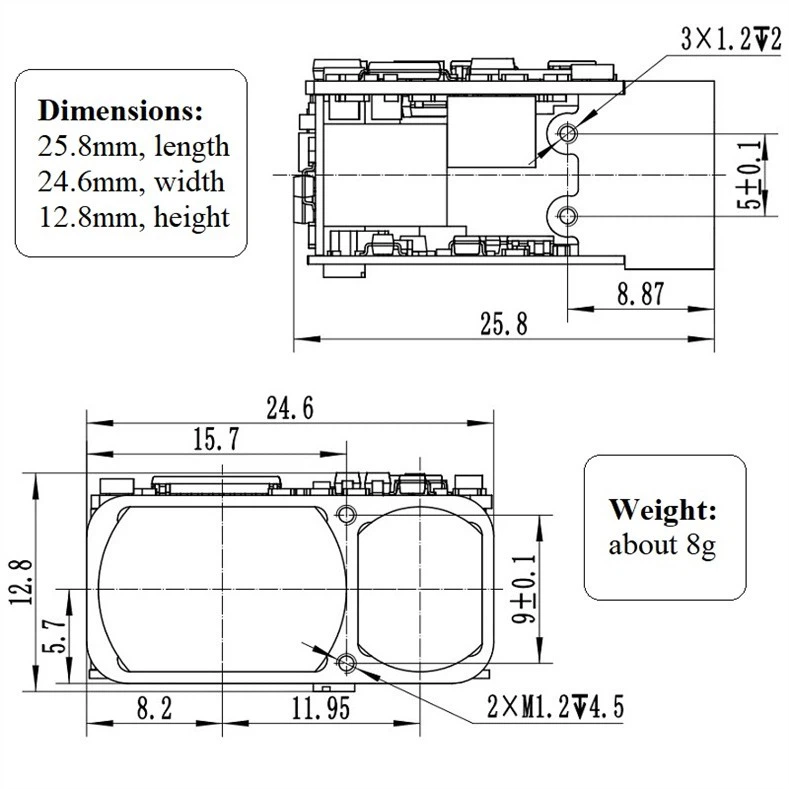

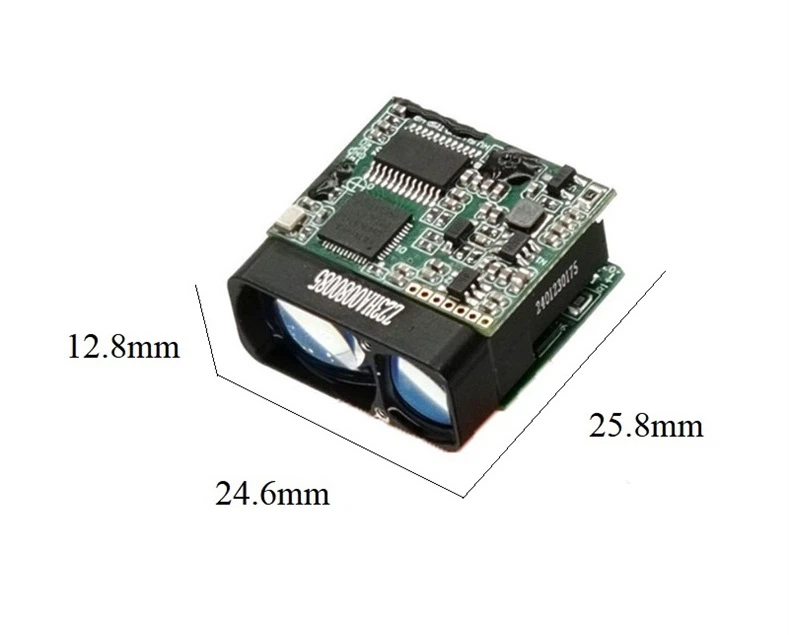

Dimensions: 25.8mm*24.6mm*12.8mm

* LiDAR PDF user manual
* FAQ about this range sensor measurement, you can ask our technical engineer.

>1. Infrared sensor for distance measurement(1500m) ×1
>2. Converter wires×1

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us.

You may want to know: How to choose a laser range finder sensor for drone?
