60m Laser Sensor
60m Outdoor laser sensor: MB2D63(k230327-6)
Measuring Range：0.03-40m
Measuring Time：0.3-4 seconds
Accuracy：+-1mm,for different applications

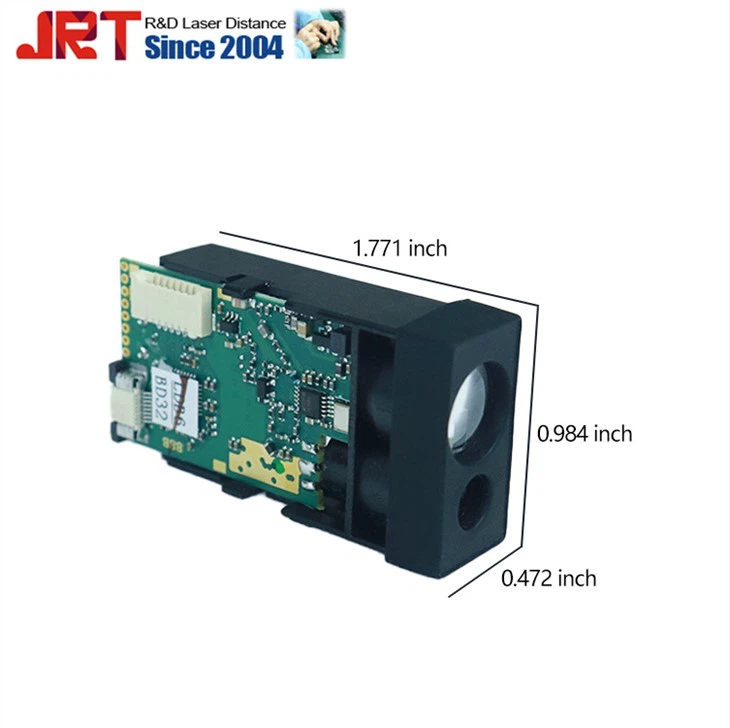

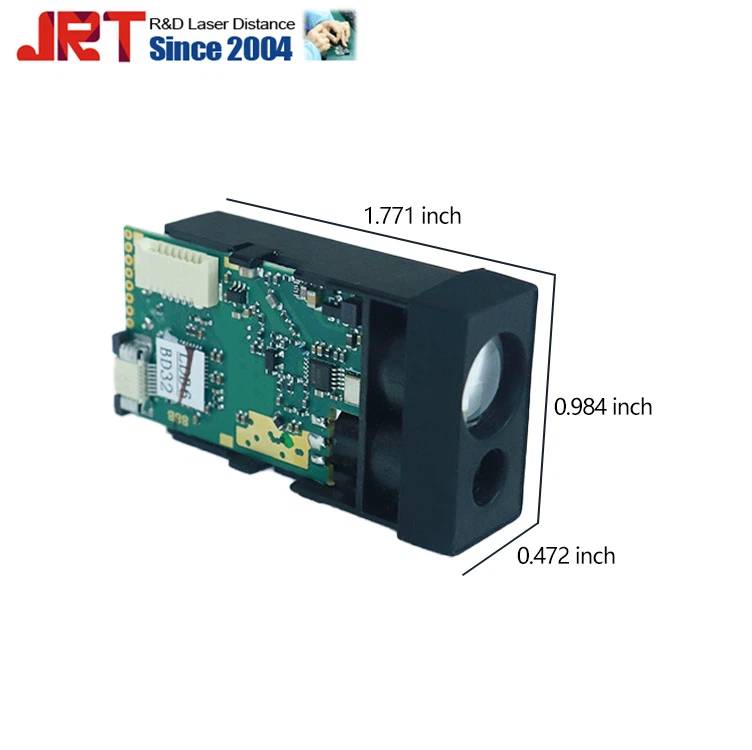

Small size：45*25*12mm,10g
Freqency: 3 Hz
Flexible Output: TTL or USB
60m outdoor laser sensor measuring CMOS
This module has the middle measuring range, can be used outdoors. Accoding to its characteristics, this module can be applied to forklift measurement,height measurement and so on. Besides, It has TTL and CMOS output method with 0.3-4 seconds measuring Time, which can get the result fast. The size of this module, 45*25*12mm, is small, so that would be easy to Install into different devices.
Why JRT 60m laser sensor?
1. It's really a industrial-use laser ranging sensor,60m long range, good stability;
2. The wavelength is 620-690nm, the product is not easy to heat, the naked eye can see the light spot, accurate positioning target;
3. Measurement frequency 3Hz(10hz can be customized), fast response, suitable for measuring moving targets;
4. High precision, accuracy up to ±1mm, really suitable for industrial site.
60m laser sensor with small size, support TTL/USB-adapter:
60m outdoor laser sensor Parameters:
Range: 0.03m -60m
Visible laser: 620nm-690nm
Measuring accuracy: ±1mm
Resolution: +-1mm
Laser type: Class 2
Measuring Time：0.4-4 seconds
Interface options: TTL,USB,RS232,RS485,Bluetooth
Weight: 10g
Input voltage: 2.5-3.3V
Working temperature: 0-40degree
Storage temperature: -25~ 60degree

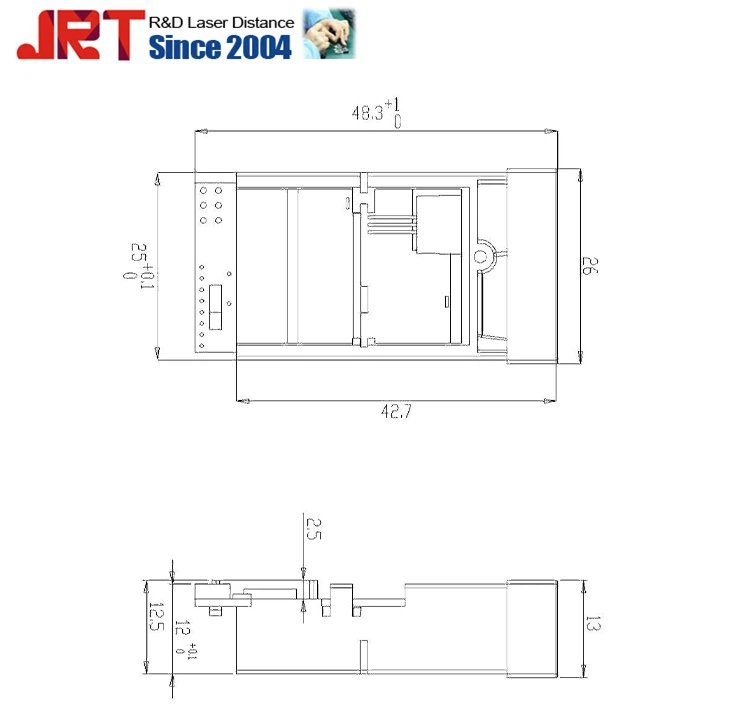

60m laser measuring sensor Mechanical Size:
Two of hot applications:
1. Thermal lmaging
Infrared thermal imager and laser ranging application, touch screen can be adjusted, high-definition imaging, durable and reliable, fast response, accurate measurement, strong performance, good experience, improve your detection efficiency.
2. Intelligent Robot
1> Life intelligent robot: Artificial intelligence robot, the use of high frequency laser ranging module, anti-collision, used for smart home, will do housework sweeping robot.
2> Agricultural robot: Agricultural robot refers to the intelligent robot used in agricultural production. It is a new generation of unmanned automatic operation machinery which can be controlled by different program software, real-time monitoring distance, detection and calculation functions.
About us
Our company has a strong technical force, strict and scientific quality management, is a strong guarantee of customer product quality. The company mainly produces a variety of Outdoor laser sensor measuring. The company in the face of market challenges, pay close attention to enterprise management, lay a solid foundation, formulate and supplement the relevant enterprise standards and management methods, constantly improve product quality, to meet the requirements of the market.
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
