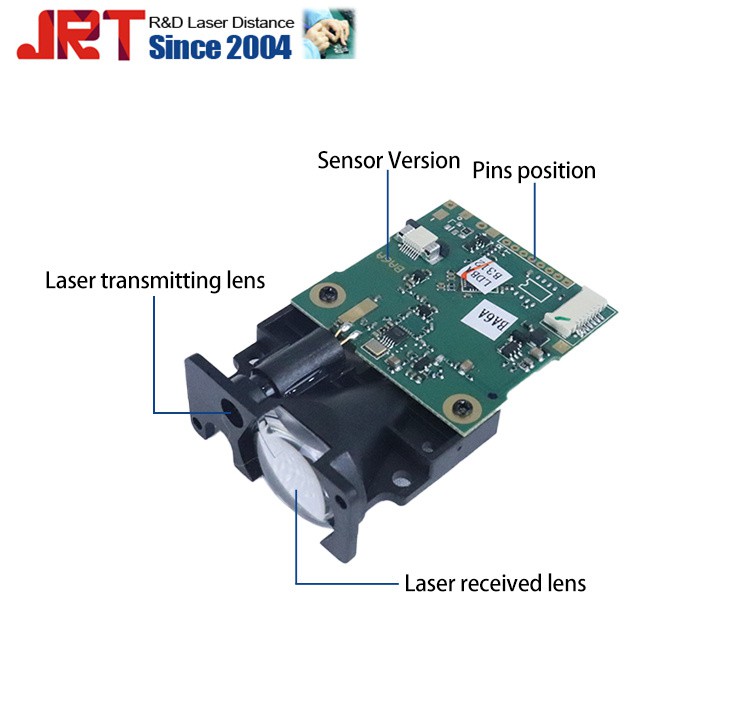

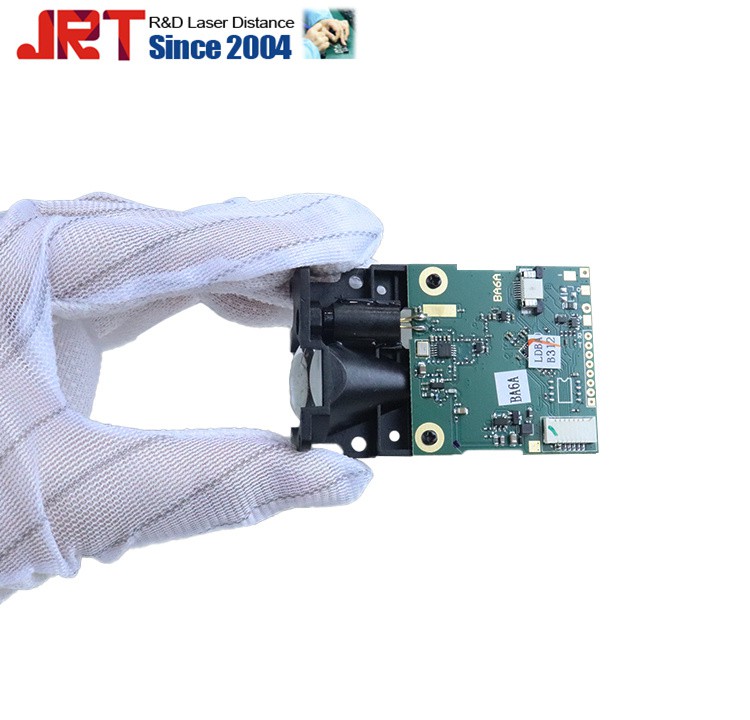

Laser Measuring Sensor 20Hz

Small 64*40*18mm

With tiny size, the laser measuring sensors offering 20Hz fast-response superior performance, characterized of detecting millimeter changes in distance.

Fast 20Hz high frequency

Reliable ranging distance from as close as 0.03m and as far as 100meter. If you applied for some harsh environments, the robust housing rated to IP67 can be customized. JRT laser distance sensors with FDA-grade.

Laser Measuring Sensor 20Hz

Are you looking for our hot selling products -BB2DA2 with 100 meters, 20hz laser rangefinder? This product of ours has a long measuring range, up to 100 meters, up to +-3mm accuracy, frequency up to 3hz! Our excellent performance, the favorble price is your best choice!

Professional Team & Engineers - technical services support

Send your inquiry about laser measuring tool to us and experience the transformative power it can have on your business or brand. With our laser measurement solutions, you can elevate your products, captivate your customers, and unlock new opportunities for growth and success in your industy.

Send Inquiry Now

Laser Measuring Sensor Model: BB2DA2-100m(k230406-7)
Accuracy: ±3mm
Measuring Unit: mm
Measuring Range:0.03~100m
Measuring Time：0.04~4s
Laser Class：Class II
Laser Type：620~690nm, <1mW

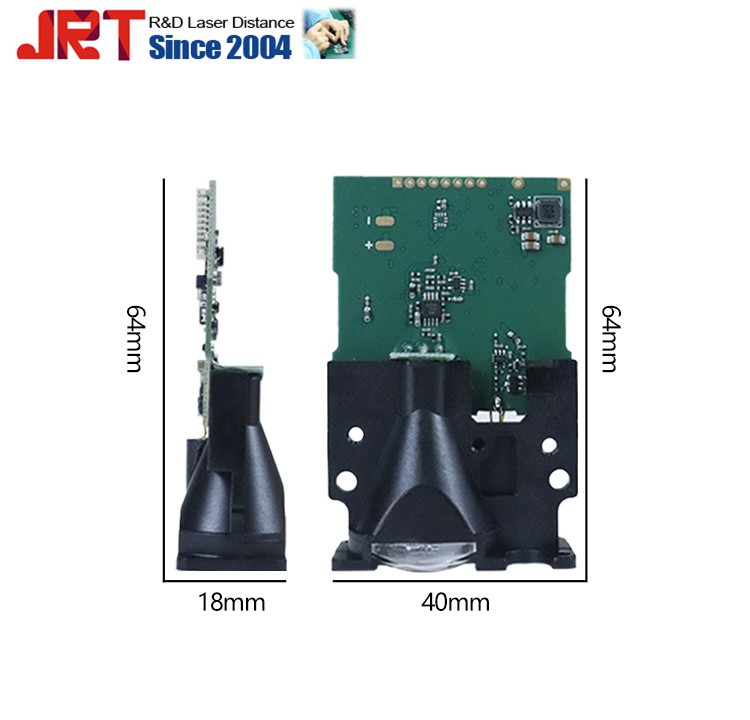

Size：64*40*18mm
Weight：13g
Voltage：DC2.5~3.3V
Electrical Level：TTL/CMOS
Frequency: 20Hz
Operating Temperature:0-40 ℃ (32-104 ℉ )
Storage Temperature:-25~60 ℃ (-13~140 ℉)

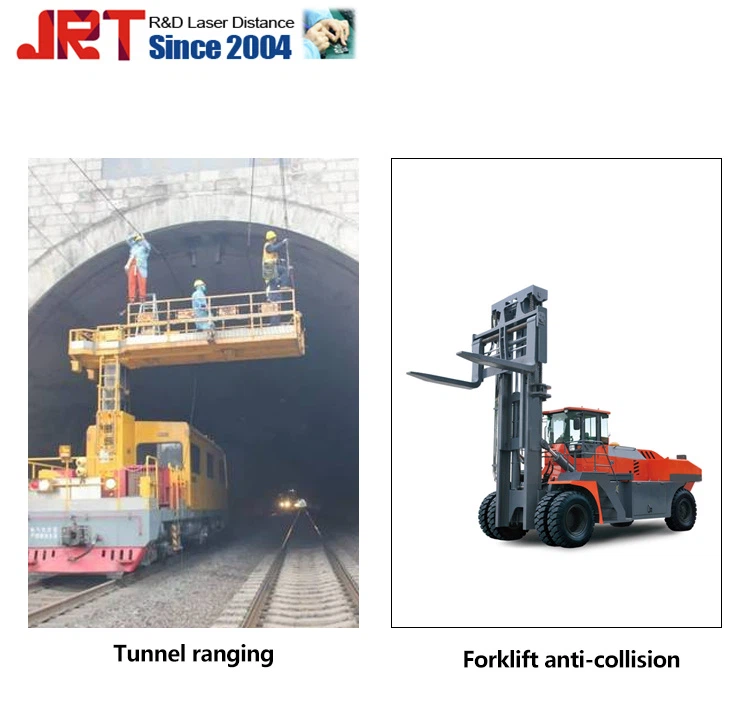

Widely used in tunnel online detection, stacker positioning, driving positioning, industrial kiln car positioning, intelligent logistics, high pick-up truck positioning, AGV obstacle avoidance, etc

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us
