10m Usb Adapter Ir Range Sensor
10m usb adapter ir range sensor is 2020 new style of Infra-red customized ir range sensor, with 1mm high accuracy. You can use the laser range sensor ditectly to test on your computer via usb adapter. It's good for industrial using according to smallest size in the world.
10m usb adapter ir range sensor
Product Description:
10m usb adapter ir range sensor is 2020 new style of Infra-red customized ir range sensor, with 1mm high accuracy. You can use the laser range sensor ditectly to test on your computer via usb adapter. It's good for industrial using according to smallest size in the world.
10m Laser Range Sensor Features:
1. USB is easy to test on your PC.
2. ir range sensor is a new design for you.
Specifications of Laser Distance Meter Sensor:
Brand Name | JRT |
Production model | U85-k208181 |
Certification | FDA/ISO9001 |
Place of Origin | China |
Precision | ±1 mm |
Measuring Unit | mm |
Measuring Distance (without Reflection) | 0.03-10 meters |
Measuring Time | 0.125~4 seconds |
Laser Class | Class II |
Laser Type | 620-690nm, 1mW |
Volume | 41*17*7mm (±1 mm) |
Weight | About 4g |
Power supply voltage | DC2.0~3.3V |
Electrical Level | TTL/CMOS |
Frequency | 3HZ |
Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
Storage Temperature | -25~60 ℃ (-13~140 ℉) |

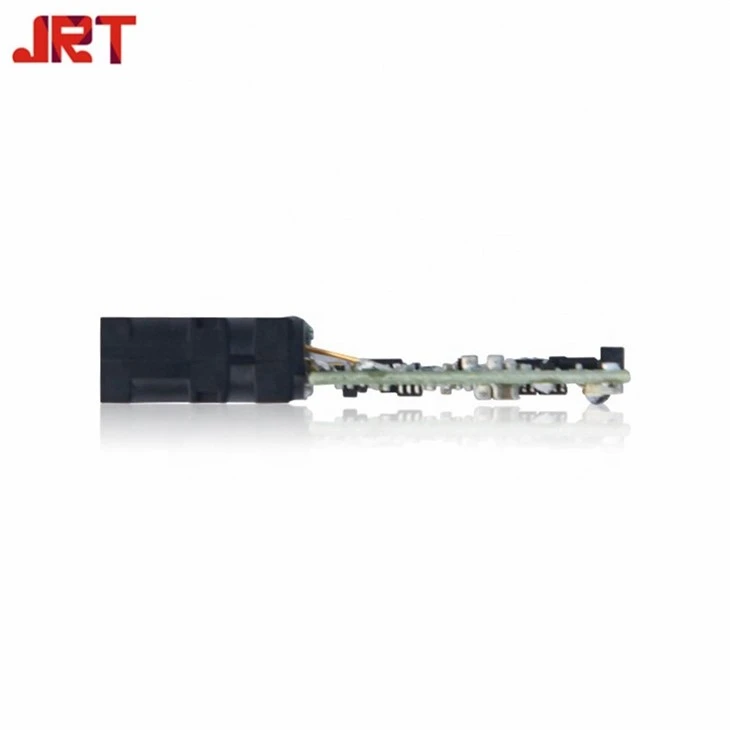

Product picture
How to install the laser distance sensor:
Diagram information
Pin information
FAQ for product manager：
1. Q: Which interface do you provide?
A: TTL/CMOS, USB, RS232,RS485,Bluetooth etc.
2. Q: How many sizes of your laser range sensor?
A: There, small of 41*17*7mm, middle of 45*25*12mm, big of 72*40*18mm.
