TOF Distance Sensor Laser Measuring Tool Short Range
Product number：IT03M-650-A
Place of origin：China
Light：650nm
Frequency：100Hz

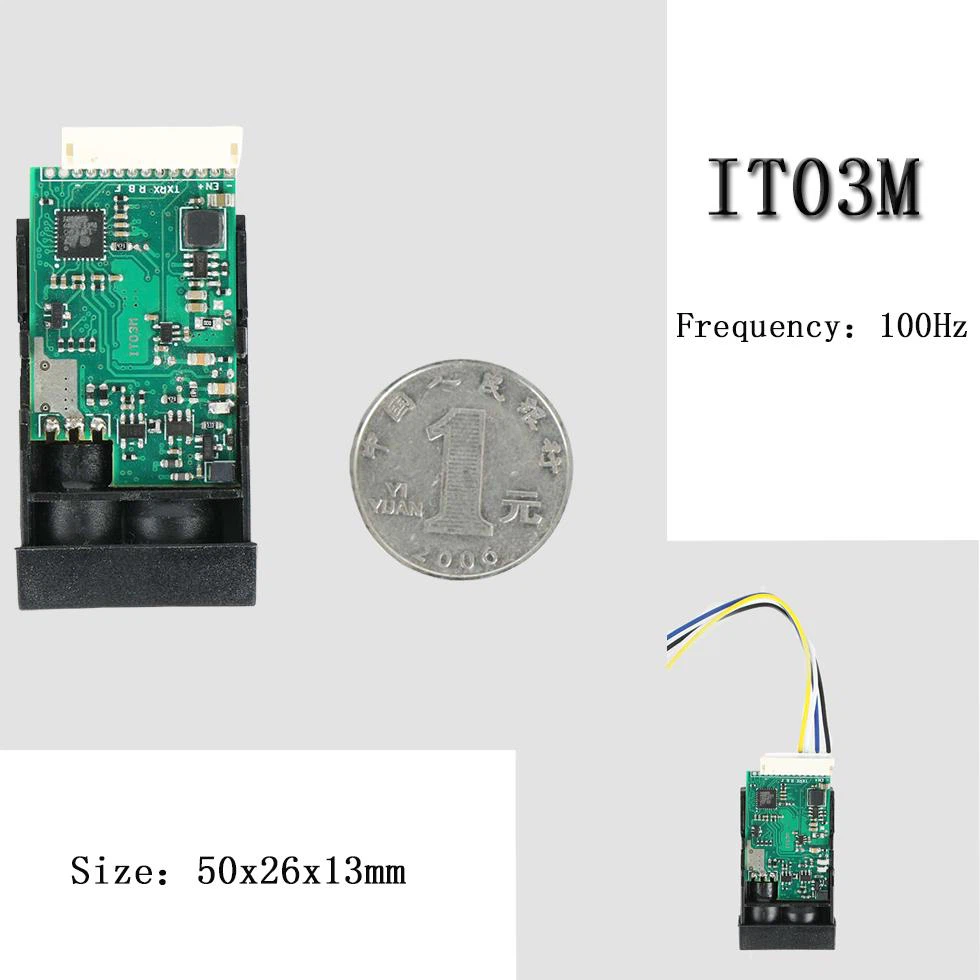

IT03M is a new generation single-point ranging lidar module developed by our company. It has fast measurement speed (100Hz), high measurement accuracy, simple installation and operation, and is suitable for obstacle avoidance and dynamic targets of robots such as drones / AGV cars. Position monitoring and industrial control measurement.
Features:
1. Outdoor measurement distance up to 15m, also has good adaptability under strong outdoor light;
2. Black targets can also reach a distance of 12 ~ 15m (1);
3.TOF working principle, measuring frequency up to 100hz, for some moving targets, it can detect targets well;
4. High and low temperature resistance -0 ~ + 50 ℃;
5. Compact size, width 26mm, length 50mm, height 13mm;
6. UART TTL level output distance value of the measured object, easy to use;
Model Number | IT03M-650-A |
Measuring Range | 0.1-15m @70% reflectivity |
Frequency | 100Hz |
Accuracy | +/-2cm @70% reflectivity |
Absolute Accuracy | 70% reflectivity:+/-2% @ 2.5-15m，3% @7-15m |
Blind Area | 10cm |
Resolution | 1cm |
Light | 650nm,<1mw,red,class 2 |
Resistance to Light | 10000 LUX |
Operating Voltage | DC +3.3V, |
Operating Current(@100Hz) | 50mA |
Power(@100Hz) | 166mw |
Operating Temperature | 0-40 ℃(regular)-10-+50 ℃(Higher and lower) |
Communication interface | UART,115200bps(default) |
Serial level | TTL 3.3V |
Volume | 50*26*13mm |
Weight | 10g |
Explanation:
(1) The reflectivity of ordinary white wall / white paper is ~ 70%.
(2) The overall error is within 5cm, and the absolute error of some test points in the 0.6 ~ 1.2m interval may reach 5 ~ 10cm.
(3) The working current is related to the measurement frequency. For every 10 Hz increase in the measurement frequency, the working current increases by 1.6 to 1.9 mA. According to the relationship, the relationship between power consumption and measurement frequency can be derived.
Warning: Do not point the laser of the IT03M laser ranging module directly at the sun, otherwise it will damage the instrument; do not point the laser of the IT03M directly at the human eye for a long time, although the IT03M is a second-class human eye safety laser. Eye damage
