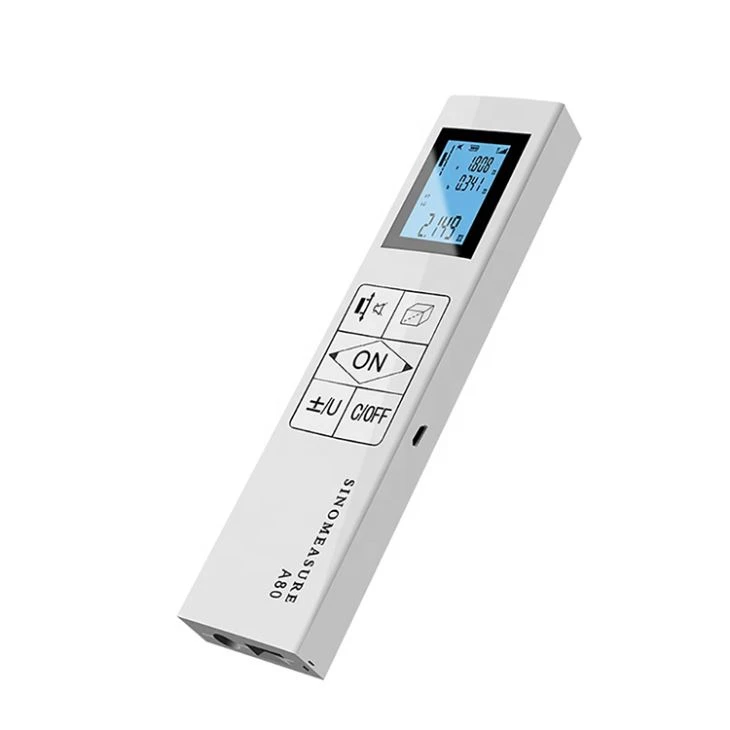

Bilateral Laser Distance Measurer Laser Meter 60m
Measuring Accuracy:±3mm
Measurement Range(No reflection plate)：60m
Unit: m/in/ft
Function: Distance / Area / Volume / Pythagorean
JRT two-way laser rangefinder can measure the distance range of 60m, and supports area / distance / volume / pythagorean measurement. The two-way laser rangefinder is your ideal assistant for accurate distance measurement.
Technical Parameters
Measuring Accuracy | ±3mm* |
Unit | m/in/ft |
Measurement Range(No reflection plate) | 60m |
Measuring Time | 0.3-4s |
Laser Type | 620~670nm,<1mw |
laser beam auto off time | 15s |
Instrument auto off time | 45s |
Display lighting | White LED |
Datum mark switch | √ |
Battery status | √ |
Battery type | 200 mAh rechargeable Li-ion battery |
Net Weight | 40g |
Operating temperature range | 0 C°～40 C° |
Storage temperature range | -20 C°～60 C° |
1. Under good measuring condition (good measuring surface,indoor temperature) can reach to 70meters, under the bad measuring condition (such as the environmental light is too strong,the diffuse reflectance of measured points is too large or too small, and excessive temperature differentials etc.),the measurement error can reach to ±0.25mm/m.
2. Please use the aiming board when there is strong sunlight or poor reflection of the target!
Product Show
About Us
The JRT laser distance module uses the phase method ranging principle. The measurement accuracy is generally one millimeter. It can accurately measure the distance of the target object. The laser ranging sensor can also be used to measure the length, width, and height of the target. It can be applied to the field of automated measurement. .
Chengdu JRT Technology Co., Ltd. was founded in 2004. Since its establishment, the company has been focusing on the development, manufacturing and marketing of laser ranging products. Its main products are industrial laser range sensors, tof distance modules, and laser rangefinders Module.
