Laser Positioning System
Our TOF ranging sensor is a newly developed product with a measuring distance of up to 12 m and a measuring accuracy of +-2 cm.
Laser rangefinder module
Introduction of Production:
TOF is the abbreviation of Time of Flight technology. Our TOF ranging sensor is a newly developed product with a measuring distance of up to 12 m and a measuring accuracy of +-2 cm. This product plays a huge role in smart home, smart security, AGV and other fields.
Specifics:
Model Name: IT02S-65-A
Measuring Range: 0.1-12m @90% reflectivity
Frequency: 100Hz/200Hz
Blind Area: 10cm
Accuracy: 2cm
Voltage: DC +3.3V
Resistance to Light: 10000 LUX
Operating Temperature: 0-40 ℃
Communication interface: UART,115200bps(default)
Key feature and application:
1.Fast response speed: the measurement frequency is up to 200 Hz, and it can also detect dynamic targets well.
2.High measurement accuracy: measurement accuracy is positive and negative two centimeters.
3.It has strong anti-interference and good adaptability under strong light.
It is suitable for smart home, UAV obstacle avoidance, dynamic target location monitoring and other fields.

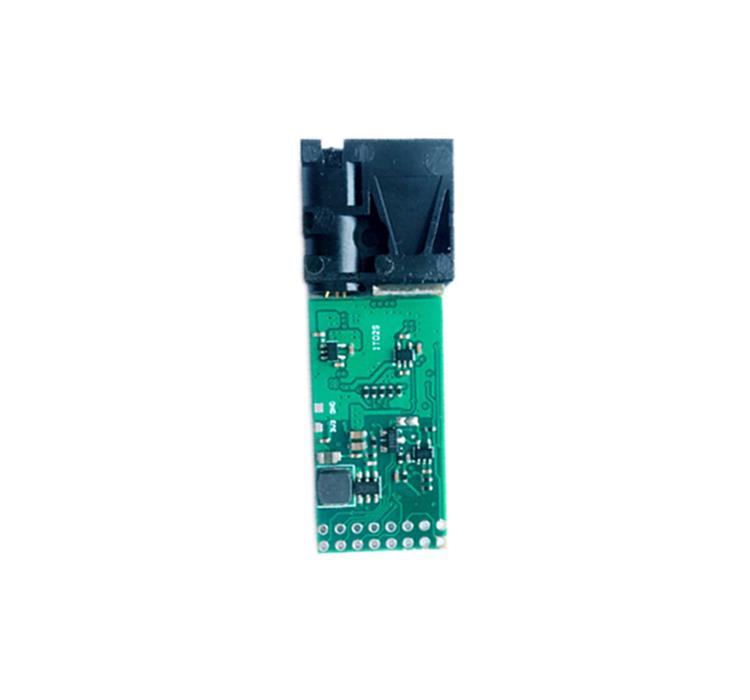

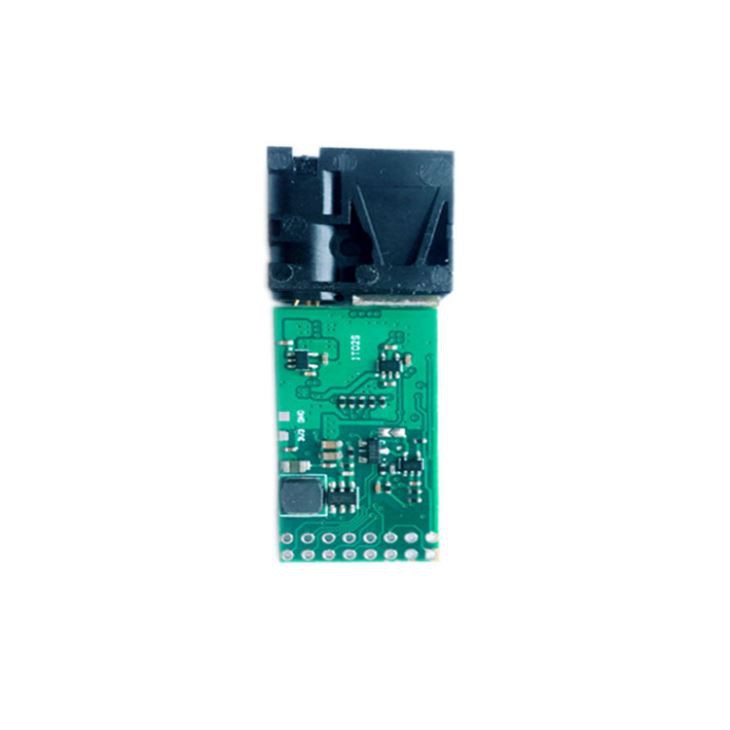

Pictures show:
