Laser sensor range cmos type industrial devices
Place of origin：China
Measuring range：0.03-100m
Size：64*40*18mm
Weight：About 15g
Frequency: 3Hz

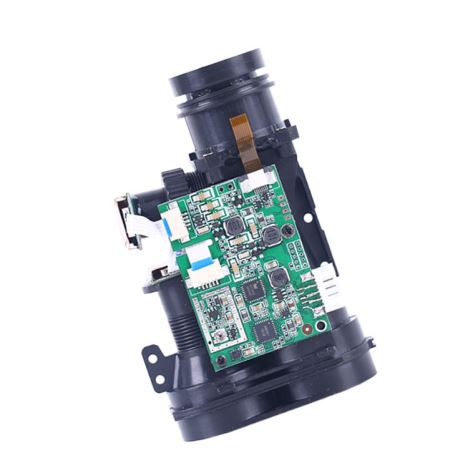

Laser range finder sensor
Pictures detail:
Main features:
1: wireless transmission, eliminating the workload of wiring;
2: ultra-high sensitivity, strong anti-interference ability;
3: non-contact measurement technology, less affected by the working environment, easy to install layout and background control;
4: In the outdoor environment, it can still maintain a high measurement accuracy and reliability;
5: the sensor can be processed into a fully sealed, easy to use in harsh environments;
6: stable power consumption, low power consumption;
7: civil engineering, environmental protection, Petrochemical, metallurgy, electric power, transportation, port, hydrology, industry and other industries can be widely used.
Parameters:
Brand Name | JRT |
Product Name | Laser Distance Sensors |
Model Number | B87A |
Certificate | FDA/ISO9001 |
Place of Origin | Chengdu |
Accuracy | ±2 mm |
Measuring Unit | mm |
Measuring Range (without Reflection) | 0.03-100m |
Measuring Time | 0.125~4 seconds |
Laser Class | Class II |
Laser Type | 620-690nm,<1mW |
Size | 64*40*18mm (±1 mm) |
Weight | About 20g |
Voltage | DC2.0~3.3V |
Electrical Level | TTL/CMOS |
Frequency | 3HZ |
Operating Temperature | 0-40 ℃ |
Storage Temperature | -25~60 ℃ |
Packaging | Neutral packing |
About Us
Founded in 2004, Chengdu JRT Meter Technology Co.,Ltd. is an enterprise specializing in the production and development of laser distance module industry and trade. It is a manufacturer possess of the world's advanced laser technology single transmit and single receive.
JRT insist on developing and producing laser distance modules with better quality, smaller size, but more favorable prices.We can do OEM /ODM designs and customize product functions as customer required.
Three production line: laser distance meter module;Industrial laser distance sensor; laser range finder.
After-sale service:
1. Provide related instructions of laser rangefinder for customers.
2. The product has a one-year warranty and provides lifelong technical support.
3. Establish quality information collection and feedback channels to master the quality status of engineering projects and products in the use process.
