Golf Rangefinder Laser Distance Sensor Industrial Device TTL
Rangefinder Sensor Number：B93D-60m(k200602-2)
Laser type: green light
Frequency: 3Hz
Measuring Range：0.03-60m
Accuracy：+/-2mm
Size:64*40*18mm
Weight:About 13g
Golf Rangefinder Green Laser Distance Sensor Industrial Device TTL

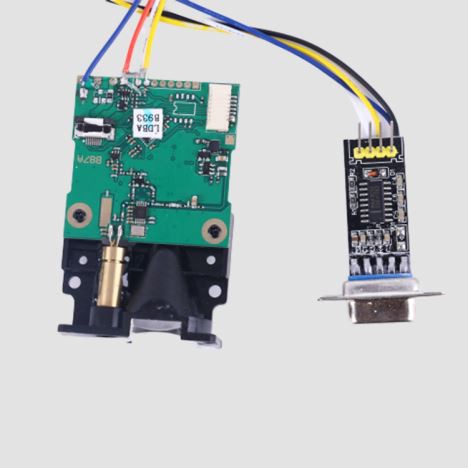

High-frequency green light ranging module, millimeter precision laser sensor, industrial ranging module TTL serial digital output, you can connect the sensor to Arduino, single chip microcomputer, support USB, RS232, RS485, Bluetooth output. Since 2004, JRT has been engaged in the development of phase laser ranging modules. We now have the world's smallest laser measuring sensor. The laser rangefinder and laser tape measure are finished products, and we showed our customers the products that our module can use.
Backside and smaller size 64*40*18mm
Front & lens
Brand Name | JRT |
Product Name | Laser Distance Meter Sensors |
Model Number | B93D |
Certificate | FDA/ISO9001 |
Place of Origin | Chengdu |
Accuracy | ±2 mm |
Measuring Unit | mm |
Measuring Range (without Reflection) | 0.03-60m |
Measuring Time | 0.03~4 seconds |
Laser Class | Class II |
Laser Type | 520nm |
Size | 64*40*18mm (±1 mm) |
Weight | About 15g |
Voltage | DC2.0~3.3V |
Electrical Level | TTL/CMOS |
Frequency | 2-3HZ |
Operating Temperature | 0-40 ℃ |
Storage Temperature | -25~60 ℃ |
Packaging | Neutral packing |
application area
Golf range finders/Hunting
Automatic cultivation depth measurement
Green Laser Distance Sensor with uSB
