Laser Distance Module With RS232 Serial Port 100m

Laser Distance Module With RS232 Serial Port 100m

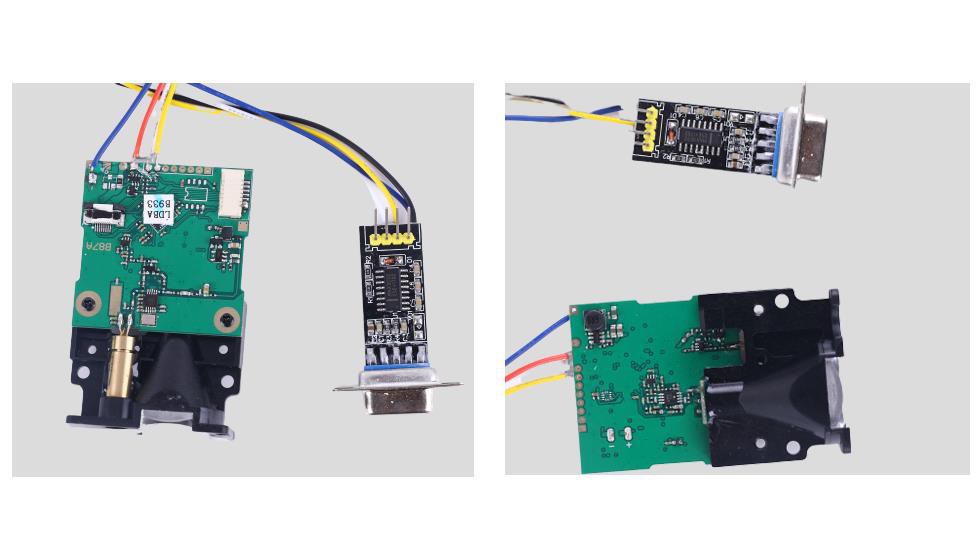

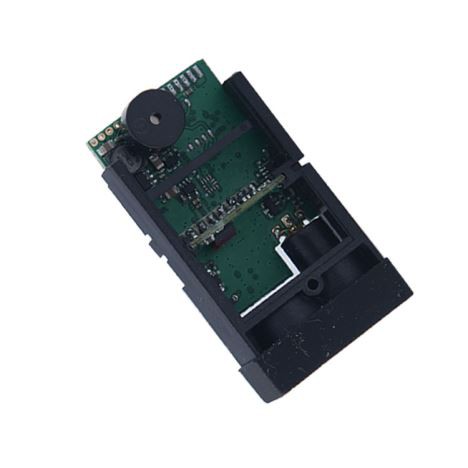

Description: JRT is an industrial range sensor manufacturer in Sichuan, China. This 100-meter laser measuring sensor is a phase laser ranging module with small size(64*40*18mm), large distance and low power consumption. It is suitable for all kinds of outdoor distance laser ranging solutions.

Industrial laser distance sensor, also known as the second developed laser distance module, supports TTL level and CMOS. Laser ranging sensors can be widely used in professional surveying and mapping, construction, mining exploration, IoT systems, intelligent transportation, warehousing and logistics, robotics, bow and arrow measurement, industrial monitoring and agricultural automation measurement.

Chengdu JRTis a domestic manufacturer specializing in the development and production of laser rangefinders and laser ranging modules. It has a strong R & D team and accepts OEM / ODM design and production. It can help customers customize solutions for different needs and provide customers with continuous Technical support and after-sales service.

Support customized service:

* The module supports data communication: serial port / RXTX / USB / RS232 / RS485

* Single measurement / continuous measurement

* Support IP54 / IP65 and other shell customization

* Support 4-20mA analog quantity customization

* Support power customization

* Support solution customization

* Buzzer

* Custom working temperature -10 ℃ ～ 50 ℃

CAD:

Hardware Connections
1. Hardware Interface: 2 line USART(Rx, Tx);
2. Baudrate: 19200bps;
3. Data bits: 8b;
4. Parity: none;
5. Flow control: none.

Power On Sequence:
1. Controller power on the module;
2. Wait 100ms or above to make sure module properly initialized;
3. Module will send back sting ",OK!" as Ready To Go signal.

Normal Operations Sequence:
1. Controller sends out the operation command(single byte ASCII);
2. Echo command from module to indicate command has been received and now in progress;
3. Command result from module.

Single Byte ASCII Control Commands:
1. 'O'(0x4F): Turn ON laser beam, module turn on the laser and return ",OK";
2. 'C'(0x43): Turn OFF laser beam, module turn off the laser and return ", OK";
3. 'S'(0x53): Module status read, module returns Temperature& Battery Voltage, e.g.: "18.0'C, 2.7V";
4. 'D'(0x44): Distance read, module returns Measure Result & Signal Quality(SQ), e.g.: "12.345m, 0079", smaller SQ value stands for more reliable distance result.

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us
