20m Flexible Precision Instruments

20m Flexible Precision Instruments Distance Sensor RXTX

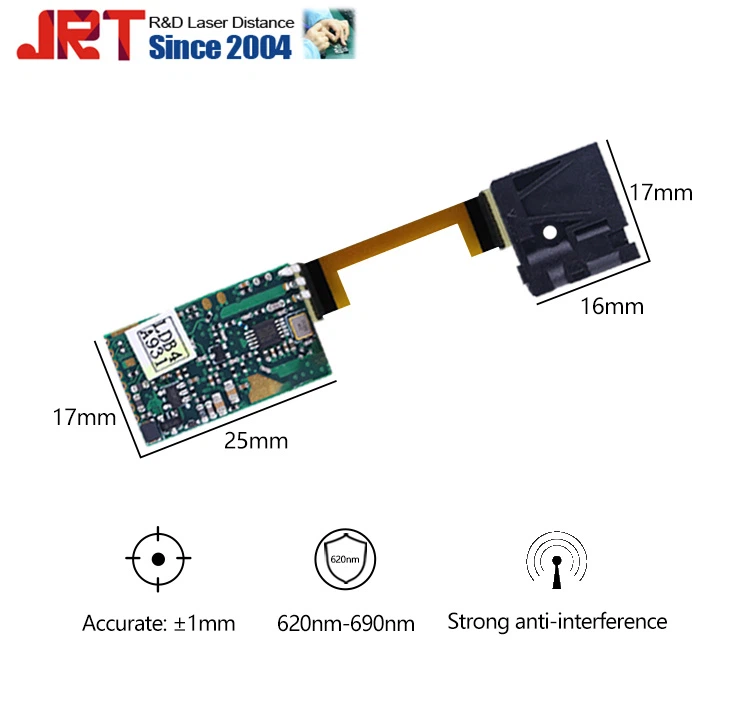

This module- SW485, is another form of U81.The two parts of this sensor was connected by a flexible wire, which can be bent in different angle. Also due to the small size of this module, it can be easily installed into your equipment. It has 20m range distance with 1mm accuracy, this module will give you a precision result. Besides this module has RXTX, which is more convenient for your using.

Precision Instruments Distance Sensor: SW85-20m(k230406-2)
Accuracy: ±1mm
Measuring Unit: mm
Measuring Range: 0.03~20m
Measuring Time：0.4~4s
Laser Class：Class II
Laser Type：620~690nm,
Size：25*17mm, 16*17mm
Weight：4g
Voltage：DC2.5~3V
Electrical Level：TTL/CMOS
Interface: USB/RS-232/RS-485/Bluetooth etc.
Frequency:3HzOperating Temperature: 0-40 ℃
Storage Temperature: -25~60 ℃

1AGV Robot:By calculating its own position and target position, the laser guided AGV vehicle can independently decide the moving path and speed, which can effectively complete various operational tasks in a large number of complex logistics scenarios.

2Industrial robot arm：Laser ranging sensors of industrial robot arm usually need to be connected to the robot's control system using sensor wires. The sensor line can be either digital signal line or analog signal line. The specific line should be determined according to the type and interface of the sensor. After the sensor line is connected, the distance information obtained by the sensor can be transmitted to the control system, so as to realize the control and accurate positioning of the robot trajectory.
