SW85 Laser Ranging Sensor

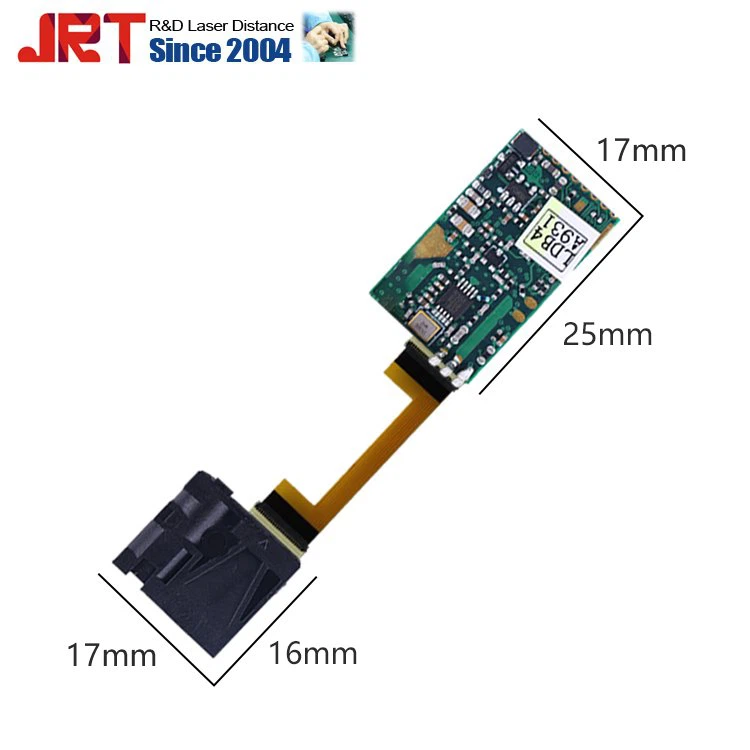

20m FPC Design Smart Devices Laser Ranging Sensor

Our FPC Design laser ranging sensor is compact and lightweight. It can be easily integrated in turnkey system for distance measurement. Meanwhile, the range of 20m is suitable for any application indoors and outdoors.

Product specification:

Range: 3cm - 20 meters

Invisible measuring: 620nm ~ 690nm

Measuring accuracy: +-1mm

Measuring frequency: Up to 3Hz

Laser type: Class 2, red

Interface options: Serial/usb to tll/rs232/rs485/bluetooth

Weight: 4g

Working temperature: 0 ~ 40 degree

Storage temperature: -25 ~ 60 degree

FAQ for Chief Engineer：

1. Q: Have you got systems with higher laser powers?

A: Yes, we can customized higher laser powers for you, but firstly please confirm if your local national laser safety regulations allowed that, thanks.

2. Q: Do you have higher resolution ratio product?

A: Yes, 0.01mm can be cusomized. Please contact us for more.

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us
