IP54 Dustproof Handheld Distance Meter 40m
Laser Range finder Model: W40-k2010315
Measuring Range: 0.03-40m
Frequency: 3Hz
Dimensions: 100*40*30mm
Laser type: 635nm, <1mW
IP54 Dustproof Handheld Distance Meter 40m
Are you looking for a mini laser distance meter up to 40 meters? Yes, the W40-k2010315 handheld distance meter 40m is a small laser distometer of 100mm*40mm*30mm. It supports USB charging functions, and functional measurement area/volume/Pythagorean theorem. With the ip54 level protections, architectural designer can use in outdoors. If you want to sell in supermarket, that's realy a nice tool.
Why us
1. Mini size for portable: 100*40*30mm
2. IP54 level waterproof
3. USB charging
Technical Parameters
Distance measurement: 3cm-40M
Unit dimensions: 100*40*30mm
Measuring precision: +-2mm
Unit: m/in/ft
Standard packing: color box
Measuring time: 0.1-3s
Laser type: 635nm, <1mW
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree
Notes:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflector.
3. 60m,100m,150m,200m can be customized.
Detailed Pictures

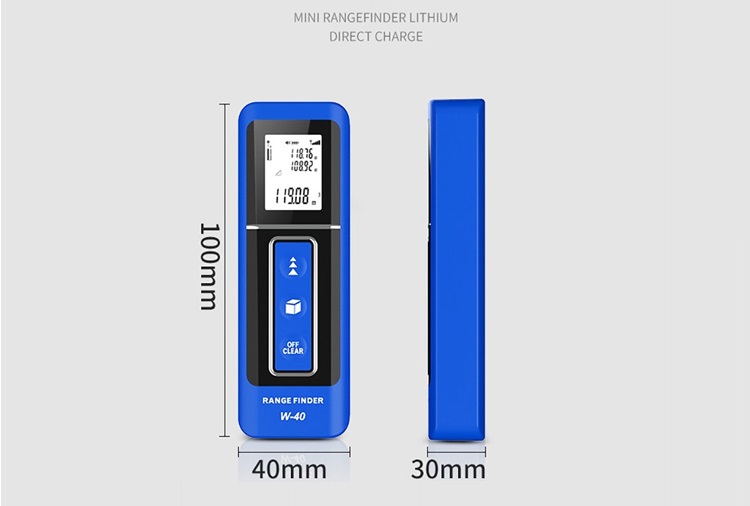

Handheld Distance Meter 40m Size
Handheld Distance Meter 40m Diagram
Handheld Distance Meter 40m Side
Three color options Handheld Distance Meter 40m

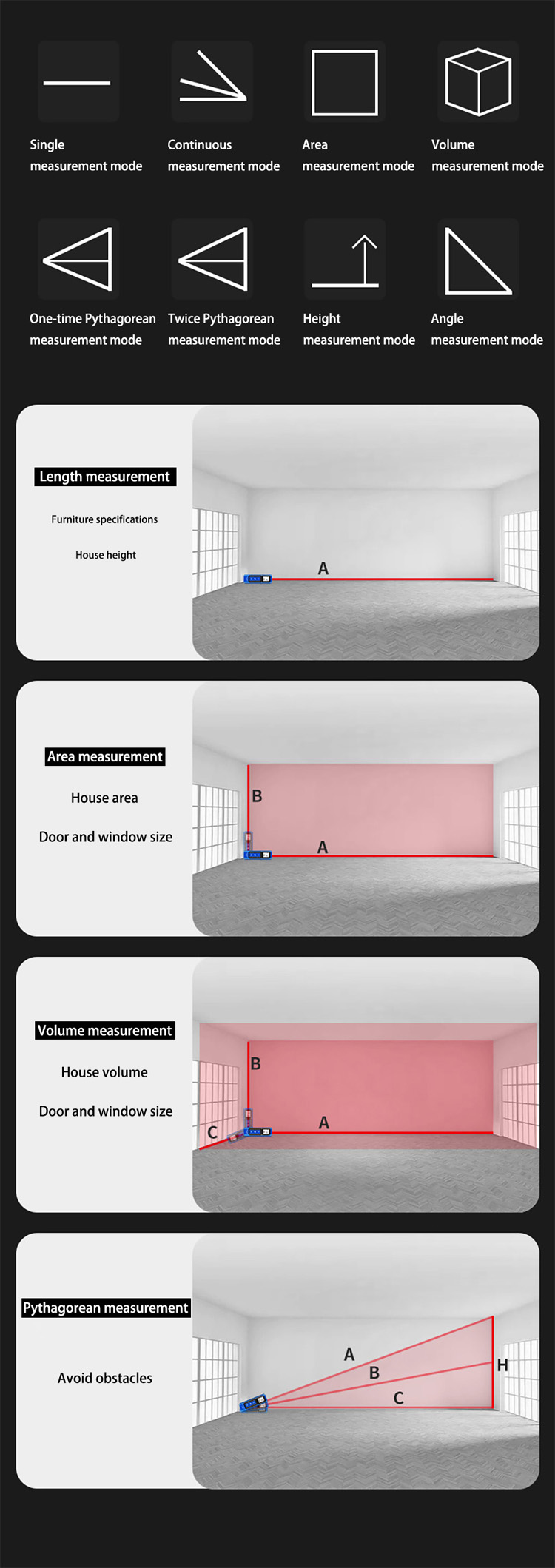

How to use Handheld Distance Meter 40m
1. Use to measure area
2. Use to measure volume
3. Use Pythagorean theorem mode to measure
Chengdu JRT Main Ranging Modules: Industrial Laser Distance Sensor, Laser Distance Meter Module, 10000Hz LiDAR Sensor.
