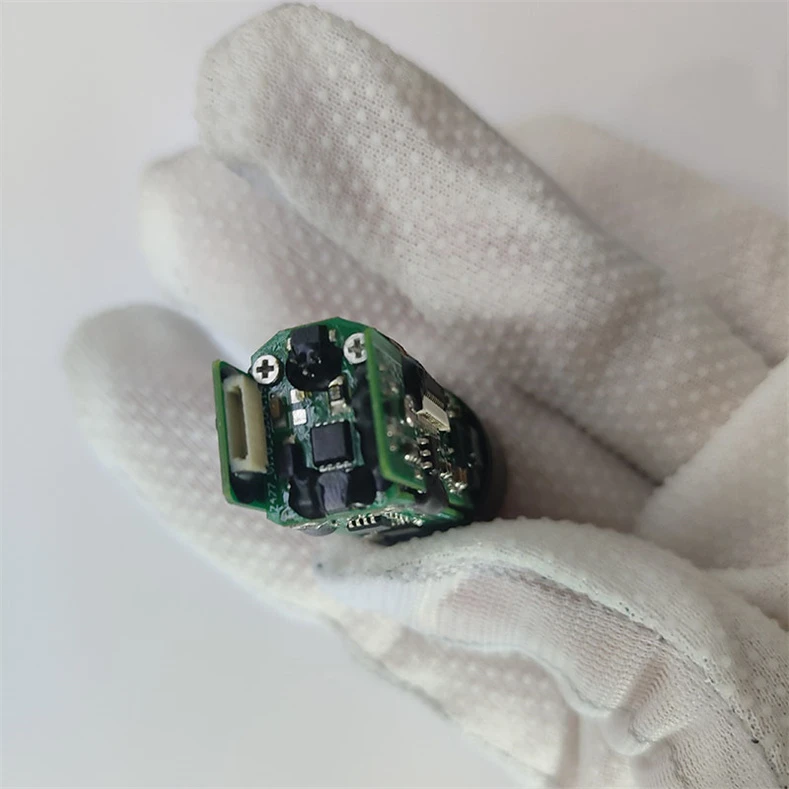

Hello, are you looking for a long distance measurement sensor to a distance up to 1000 meters? It is prefered to have built in UART-TTL support. the accuracy around 1m is good for your outdoor industrial applications. This accurate measurement distance sensor technology is a lightweight& small-size solutions that good for Drone/unmanned aerial vehicles (UAVs) obstacle detection.
If you need some units for test before placing the first batch of order for more sensors, please contact us: jane.l@jrt-measure.com.

Technical Parameters:
Model: PTYC2-10X-1(k250722n25-3)
1. Operating wavelength: 905nm
2. Eye safety level: Class 1
3. Emission aperture: Φ4.2mm
4. Receiving aperture: Φ14.5mm
5. Ranging capability: ≥1000m (Target: large target, visibility: ≥10km. Target reflectivity: 0.3)
6. Ranging blind zone: ≤5m
7. Ranging accuracy: ≤±1m (≤400m), ≤d×0.4% (>400m)
8. Ranging success rate: ≥99%
9. Ranging mode: Single shot, continuous ranging
10. Function: Laser ranging function

Size: φ17mm×37.2mm
Weight: ≤10g

Electrical:
Electrical interface: Connector socket: 0.8WTB-6AB-01
Connector plug: 0.8WTB-6Y-2
Power supply voltage: 3.3V~5V
Standby power consumption: ≤0.6W
Average power consumption: Blind zone/near range <0.85W, air/long range <1.35W

Environmental Adaptability
Operating temperature: -20℃~+60℃
Storage temperature: -55℃ ~ +70℃

- Baud rate: 115200 (default), 9600, 14400, 19200, 38400, 57600, 115200, 230400 bps;
- Single-byte transmission format: 1 start bit, 8 data bits, no parity, 1 stop bit, with the lower 8-bit data transmitted first and the higher 8-bit data transmitted later.
The electrical interface requirements are as follows:
- Power supply voltage: 3.3V to 5V;
- Communication type: UART-TTL;
- Standby power consumption: ≤ 0.6W;
- Average power consumption: blind zone/near range < 0.85W, skyward/far range < 1.35W;
- Leakage current: < 100uA;
The upper computer end realizes the cross-link test with the ranging machine end through the 0.8WTB-6Y-2 connector and the 0.8WTB-6AB-01 connector (Lok Hwa Chai Po). The power supply and communication port pin definitions of the ranging machine end are shown in Table 1.

Example: How to test a 1000m Long-Range Laser Distance Sensor in Simple Steps
