Long Range Laser Distance Sensor
Long range laserdistance sensor: PTF1200-1000m(k230423-3)
Range: 3-1000m
Laser Class：Class I
Laser Type：905nm, <1mW
Measuring accuracy: +/-1m
Resolution: 0.1m
Measuring Frequency: 1Hz

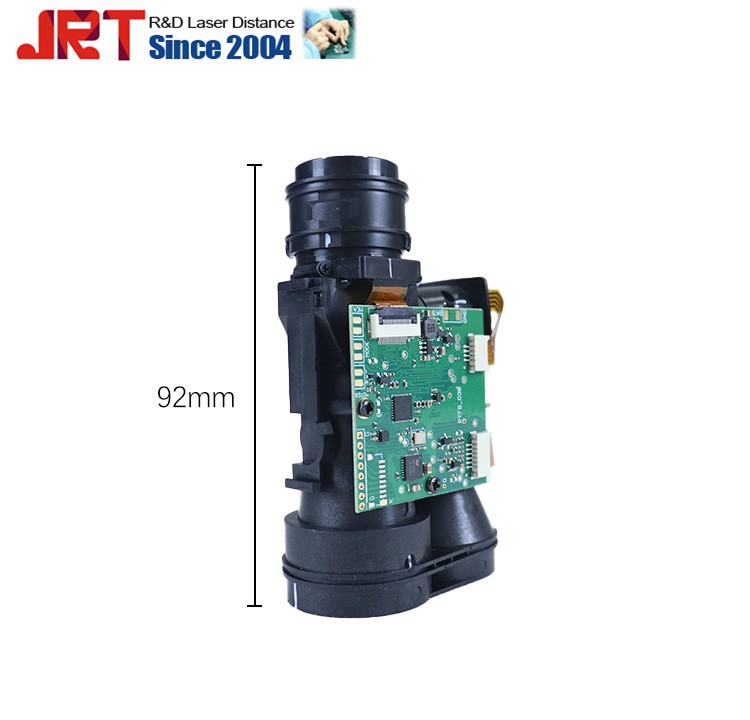

Demisions：92*54*33.1mm
Weight：66g
Operating Temperature: 0~50 ℃
Capable of measuring distances up to 1 kilometers.
This type of pulsed laser measure sensor is often used in golf, pod, hunting, forest protection and other outdoor applications. If you have any other questions, please contact us!
1000m Long Range Laser Distance Sensor
JRT's outdoor long range laser distance sensor is one of our most popular products. If you have a gun sight, thermal imaging, drone project, the PTFS can be used in your project. Excellent measuring ability, good accuracy, can be very good to help your project, and we also provide after-sales service, and if you have any questions we will help you answer, quickly to buy!
1000m Telescope Sensor Schematic Diagram:
The principle is to use the laser signal sent to the target, through the reflection of the signal time difference to calculate the distance of the target.
1000m Telescope Sensor Parameters:
Model: PTF1200-1000m(k230423-3)
Range: 3-1000m
Laser Class：Class I
Laser Type：905nm, <1mW
Resolution: 0.1m
Frequence: 1Hz
Size：92*54*33.1mm
Operating Temperature: 0~50 ℃
Easy installation, fast response, high induction precision, dynamic target induction, measurement frequency up to 1Hz.
1000m Range Telescope Sensor :
It can be measured for many times, and the obtained results can be compared repeatedly to ensure the reliability of the measurement results.
1000m Range Telescope Sensor Application Scenarios:
TTL interface of 1000 meters long distance laser ranging sensor is a kind of high precision laser ranging module. It is suitable for applications that need to measure a wide range of distances. It has the advantages of high precision, high reliability, long life, small size and portability.
The module adopts high-quality laser transmitting tube and highly sensitive receiver, which can realize fast and accurate ranging in a relatively long range, and can be widely used in robotics, surveying and mapping, remote sensing, geological exploration, security and other fields.
The TTL interface of the module is convenient for users to access, the communication speed is fast, and the high-speed data transmission can be realized. At the same time, the interface has good anti-interference and stability, and can work well in a variety of complex environment.
In short, TTL interface of 1000m distance laser ranging sensor is a kind of laser ranging sensor with high performance, high precision and high reliability, which is suitable for all kinds of application scenarios that need to measure a wide range of distance.
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
For more info, please feel free to contact us
