200m Long Range Laser Distance Sensor
LiDARs model: HSLD01-k2102231
Measuring Range: 0.1m -200m
Frequency: 50000 Hz
Size：43*35*21mm
Weight：20g
200m Long Range Laser Distance Sensor
HSLD01-k2102231 Laser Distance Sensor is JRT new product that can measure 200m.The Long Range Laser Distance Sensor has industrial high-speed performance, also called 200m LiDAR (USB/RS232 version- 3.3-5v). It has strong ranging ability, that will greatly expand its application range even in dark conditions.
Product parameters:
Production model | HSLD01-k2102231 |
Accuracy | ±3~5cm(<50m) /±1%(>50m) |
| Measuring Range | 0.1-200m |
Resolution | 1cm |
Frequency | 10000 Hz |
Laser Type | 905nm，Class I |
Size | 43*35*21mm |
Weight | 20g |
Input Voltage | 8-36V |
Average Current | 80mA @ 9V |
Average Power | ≤0.72W |
| Operating Temperature | -15℃~50℃ |
Storage Temperature | -40℃~85℃ |

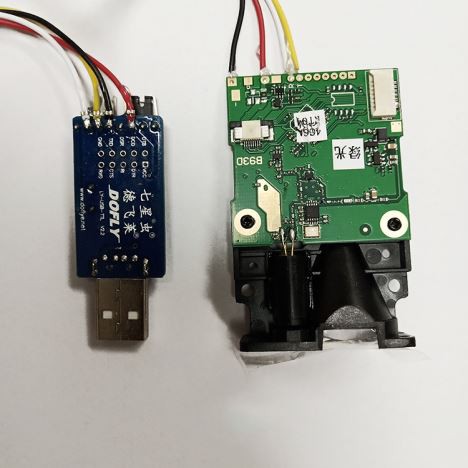

Product picture:
200m Laser Distance Sensor Size
TTL or usb interface optional design:
How to package the 200m laser distance sensor:
200m LiDAR Sensor Applications:
About us:
Chengdu JRT Main Ranging Sensors: Industrial Laser Range Sensor, Laser Distance Meter Module, High Frequency LiDAR Sensor.
