Arduino Distance Measurement Laser
Product model：M88B-50m(k190909)
Measuring Range: 0.03-50m
Accuracy: ±mm(0.04 inch)
Frequency: 3Hz(20Hz can be customized)
Laser class: Class II
Dimensions: 45*25*12mm
Key characteristics:
1. Support continuous measurement, single measurement.
2. The measurement range is 0.03-50m.
3. It can be used for indoor and outdoor measurement.
technical parameters
| Brand | JRT-Measure |
| Product model | M88B-50m(k190909) |
| Electrical level | TTL/CMOS |
| HS code | 9031809090 (Laser distance module) |
| Measurement accuracy | ±mm(0.04 inch) |
| Measurement range | 0.03-50 meters |
| Measurement frequency | 3Hz (20Hz can be customized) |
| Measurement time | 0.3~4s |
| Weight | About 10g |
| Operating temperature | 0-40 degree (-10-50 degree can be customized) |
How to choose the interface of Laser distance sensor?
JRT industrial laser ranging sensors, support TTL/USB/RS-232/RS-485/Bluetooth interface communication. You can choose the suitable model for your distance measurement sensors project.
60m USB Version
50M RS232 Model
60m RS-485 Type

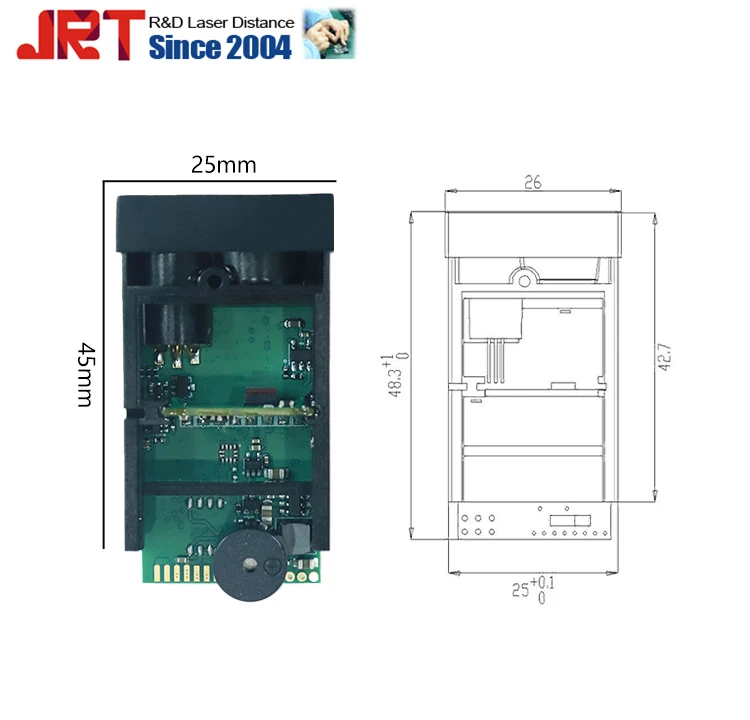

Mechanical Dimensions
Type of package & shipping:
In order to prevent products from being damaged, we usually send them by express mail.
FAQs
Q1: Do you have anything to pay attention to when using laser rangefinder?
A1: Do not use tools (such as screwdrivers) to open equipment, can not directly aim at the sun, pay attention to the need to use within the scope of the declaration.
Q2: Do you have a minimum purchase?
A2: The minimum number of items we buy is one.
company strength
| Certificate | FDA | ISO9001 & ISO14001 | FCC | CE |
| Production Line | Industrial series | ToF series | Laser meter series | Customization series |
| Business Countries | Europe | America | Asia | Oceania |
| Product Series | High precision | High frequency | High protection | Long range |
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
