10M USB Small LiDAR FPC

10M USB Small LiDAR Sensor FPC

10m LiDAR Sensor with FPC USB, is 3Hz measuring frequency. The Small LiDAR Sensor(41*17*7mm) can be used to many industrial applicaitons, according to the compact size. The the measure accuracy is accurate up to ±1mm.

Product Parameters:

Range: 3cm - 10m

Invisible measuring: 620nm ~ 690nm

Measuring accuracy: +-1mm

Measuring time: 0.4-4s

Measuring frequency: Up to 3Hz

Laser type: Class 2, red

Interface options: Serial/TTL/rs232/rs485/Bluetooth

Size: 41*17*7mm

Weight：4g

Working temperature: 0 ~ 40 degree

Storage temperature: -25 ~ 60 degree

Working principle, pin definition, etc

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3. Voltage can be changed by power converter LDO

4. Frequency would be affected by environment.

5. Operating temperature -10 ℃~50 ℃ can be customized.

6. Analog can be customized.

This is FPC version with USB connector. So customers can test easily via directly connection to your computer.

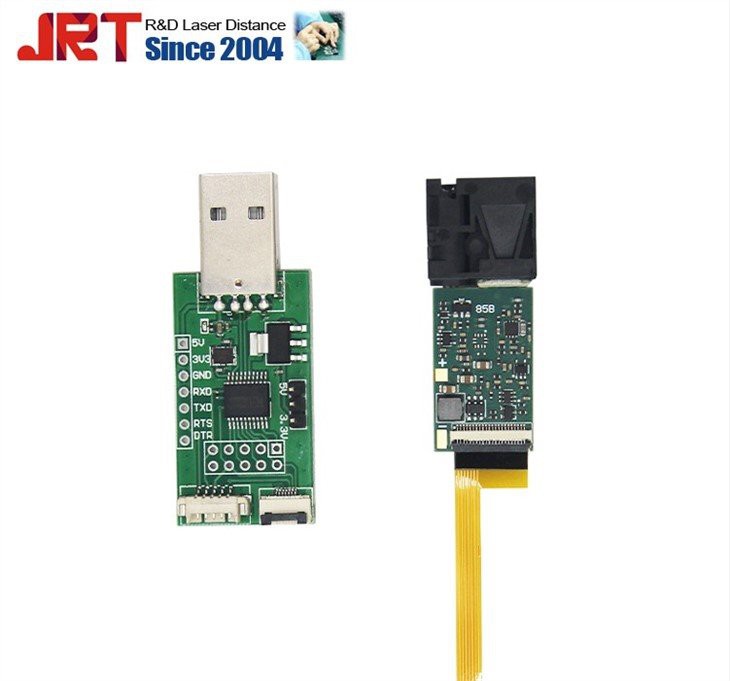

The following is the short rang laser distance sensor module and the FPC connection section separately.

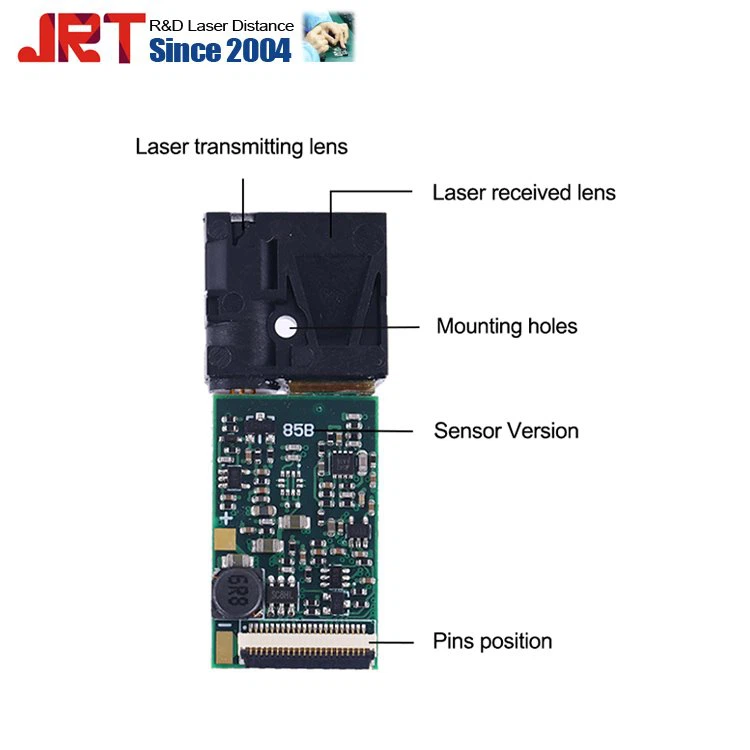

This laser range sensor, small size 41*17*7mm, easy to install, using phase laser ranging principle, ±1mm high accuracy, suitable for various industrial applications.

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Rangefinder Module, TOF High Frequency LiDAR Sensor, Instrument And Measurement Tools.

For more info, please feel free to contact us.
