Smart Laser Sensor China Supply Distance Module RXTX

TTL Serial Port Smallest Laser Distance Sensor

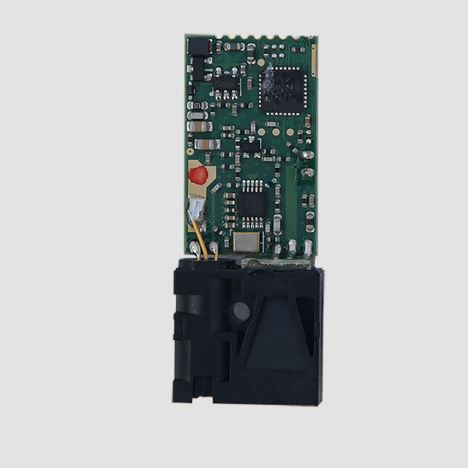

The RXTX TTL serial port distance sensor is currently the smallest laser distance sensor, which can be widely used in the fields of intelligent logistics, robots, warehouses and drones with an accuracy of +-1mm. It is the smallest distance measuring sensor with a size of 41x17x7mm and a weight of about 4g. It can measure a range of 0.03~10M without a reflector. The precise measurement performance of the Laser Mesure sensor module satisfies many users from all over the world.

Container deformation measurement

Off-street parking

Specification:

Range: 0.03 meters - 10 meter

Invisible measuring: 620nm ~ 690nm

Measuring accuracy: +-1 mm

Measuring frequency: Up to 3 Hz

Laser type: Class 2, red

Interface options: Serial/usb/rs232/rs485/bluetooth

Size: 41*17*7mm

Working temperature: 0 ~ 40 degree

Storage temperature: -25 ~ 60 degree

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3. Voltage can be changed by power converter LDO

4. Frequency would be affected by environment.

5. Operating temperature -10 ℃~50 ℃ can be customized.

6. Analog can be customized.

About Us

Some our customers often asked:

1. And is the accuracy +-1mm ? Yes

2. Can the laser sensor measure 10m? Yes

3. Can I use this laser distance sensor to make laser measure tools? Yes. It is a small size, good for your laser measure tools projects.

Laser distance meter technology

JRT laser Laser distance meter sensors adopt Single Transmit And Single Receive principle, which better for low power consumption.

Quality Control:

(1) Quality management of raw materials and products. The raw materials entering the warehouse will be strictly inspected and accepted, while strengthening management to ensure timely supply.

(2) For the management of packaging quality, since the laser ranging module is a precise measurement of electronic products, we have formulated packaging standards according to the characteristics of the products, and use double-layer foam boxes for protection.

(3) Internal quality inspection and audit, we have special testing equipment and several quality inspection personnel to carry out quality inspection on products.
