3000m Laser Tool Measurement
Laser Measurement Systems Model: LRF3km-1(k240808n-4)
Range: 3000m
Laser wavelength: 1535nm±10nm
Ranging accuracy: ±1m
Weight: about 58g
Power supply voltage: 4.8V ~ 8.5V
3000m Laser Tool Measurement

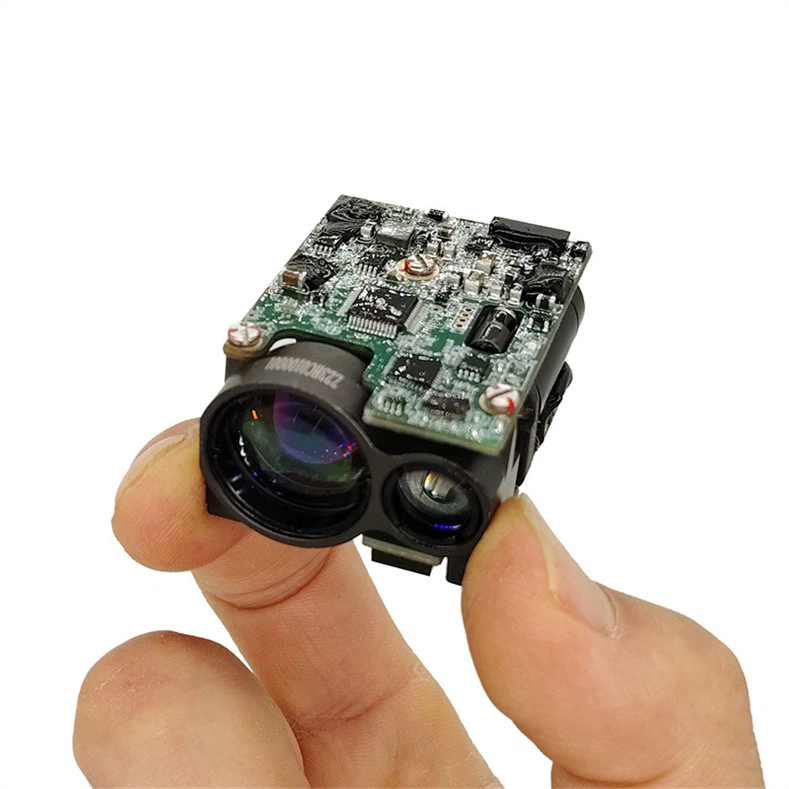

The LRF3km is a long-range & pro-grade laser tool measurement distance up to 3000 meters(about 9842 feet). The laser distance measurement sensor features small size, making it easy to integrate with customers' device like, thermal imager, rifle telescope, Drone pods, etc. How about your project? If you are looking for a small laser ranging solution with 1535nm, long, characteristics, or customized service, please feel free to contact us.

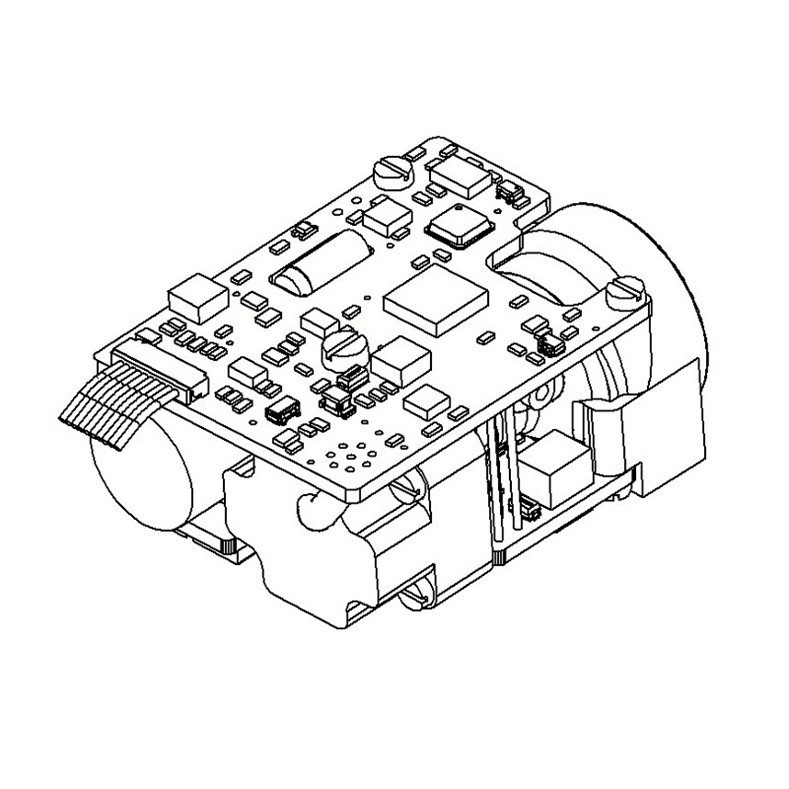

Mechanical Dimensions
Technical Parameters
Working band: 1535nm±10nm
Ranging capacity: ≥3000m (2.3x2.3m target), typical large target 6000m
Distance blind area: ≤15m
Ranging accuracy: ±1m
Accuracy: ≥98%
Distance resolution: ≤40m
Range frequency: single, 1Hz, 5Hz (10Hz can be customized)
Product weight: ≤58g
Dimensions: 50mm×36.5mm×24mm
Power supply voltage: 4.8V ~ 8.5V
Power dissipation
Standby power consumption: ≤0.5W
Average power consumption: ≤2W
Environmental adaptability
Operating temperature: -40℃ ~ +60℃
Storage temperature: -55℃ ~ +70℃
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Rangefinder Module, TOF High Frequency LiDAR Sensor, Instrument And Measurement Tools.
For more info, please feel free to contact us.
