Long Range Distance Sensors

The long range distance sensors are optical sensors designed for non-contact measurement of distance, length, height and depth. The long range sensor for measuring ranges up to 4000m, that can be widely used for pod drone positioning, Topographic mapping, Natural resource management, and archaeology in architecture building. If you want to order 2 or 3 samples of long range distance sensors to test, welcome to contact us.

Measuring range: 4000m
Operating wavelength: 1535nm ±10nm
Eye-Safe: Class 1 (IEC 60825-1)
Receiving Aperture: φ19mm
Range performance: 7000m Maximum range can be customized
≥5500m Big target, Reflectivity: 60 %, observer visibility 12 km
≥4000m 2.3×2.3m NATO target, Reflectivity: 30 %, observer visibility 8 km
≥2300m 0.5×1.7m Person, Reflectivity: 10 %, observer visibility 8 km
≥1100m 0.2x0.3m UAV, Reflectivity: 10 %, observer visibility 8 km
Communication Interface: RS422
Humidity: ≤ 60%
Ranging accuracy: ±1m
Accuracy rate: ≥98%
Divergence angle: ≤0.5mrad
Ranging frequency: 1~10hz
Continuous ranging tim:e ≥30min
Non-parallelism of the laser optical axis to the mounting reference <0.3mrad

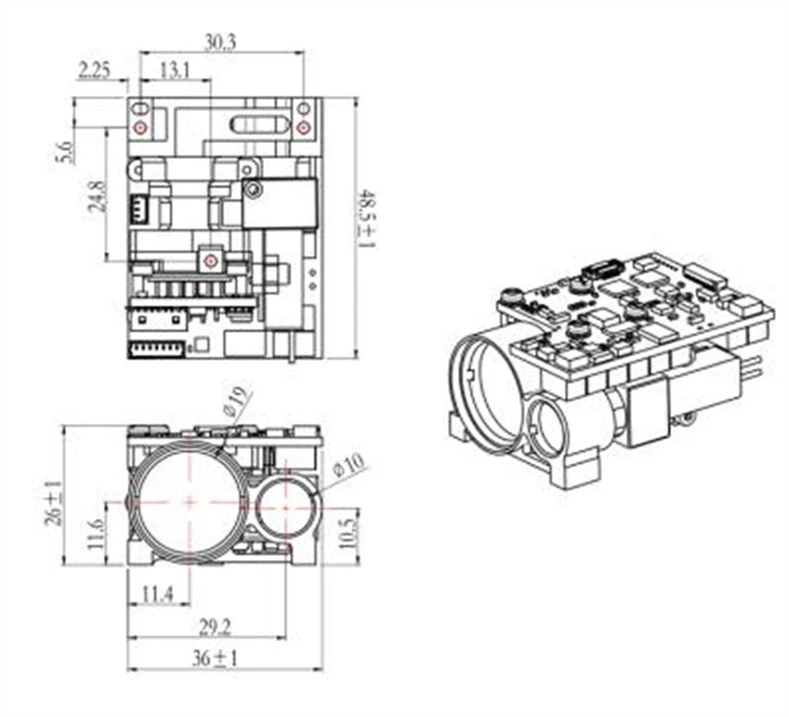

Size: ≤48.5×36×26mm
Voltage: 5V

Standby power consumption ≤1W.
Rated power consumption: ≤1.6W.
Peak power consumption: ≤4W
Working temperature: -40℃~+70℃
Storage temperature: -50℃~+75℃
Weight: ≤57g
Shock: 1800g,6ms
