Laser Rangefinder Sensor 700m
Distance Sensor model: PTFS-700(k220406)
Measuring Range: 3m -700m
Frequency: 1 Hz
Dimensions：43*35*21mm
Weight：30g

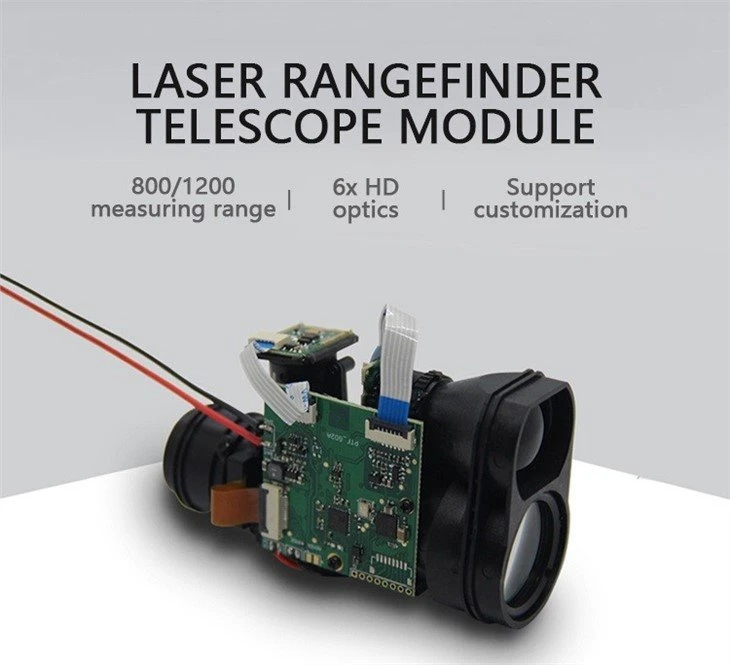

700M Long distance laser rangefinder sensor
The PTFS series laser ranging module is the latest generation of outdoor long-distance laser rangefinder sensor. It has the characteristics of small size, light weight, strong measurement ability, high measurement accuracy, simple installation and operation. The measurement distance can be reached 700m under outdoor sunlight with excellent perfomance.
| Technical Parameters: |
| Model: PTFS-700m |
| Range: 3-700m, at 70% Reflectivity |
| Maximum Single Measurement Time: 1s |
| Absolute Accuracy: +/-1m |
| Blind Area: 3m |
| Resolution: 0.1m |
| Light: 905nm laser, class 1 |
| Operating Voltage: Typical value: DC +3.3V, Operating range: +2.5V~+3.5V" |
| Current: 100mA |
| Power: 330mW, at 3.3V |
| Operating Temperature: 0~50℃ |
| Communication Interface: UART,Baudrate 115200bps, default |
| Serial level: TTL 3.3V |
| Frequency: 1 Hz |
| Volume: 43*35*21mm |
| Weight: 30g |
About us:
Chengdu JRT Main Range Sensors: Industrial Laser Distance Sensor, Laser Rangefinder Module, Electronic Distance Measurer Sensor, Tof LiDAR Sensor.
FAQ for purchasing manager：
1. Q: Are you a factory or a trader?
A: We are a manufacturer in China since 2004, so If you need competitive price, we can support you at the wholesale price.
2. Q: Can you provide customize service?
A: Yes, please send us the reuirements files, so we can estimate the time for you.
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
