100Hz 50m TOF Distance Senso Ultra High Frequency

100Hz 50m TOF Distance Sensor Ultra High Frequency

Advantages: This laser ranging module has fast measurement speed and strong anti-interference ability, which is suitable for various outdoor scenes such as UAV Positioning Altitude, vegetable picking robot arm, agricultural automation, intelligent system for grain silo warehouse material level detection, tunnel measurement and control.

Grain silo height monitoring	Vegetable picking robot arm	UAV positioning altitude

TOF is short for Time of flight, meaning time-of-flight ranging method. The TOF ranging method is a two-way ranging technology. It mainly uses the time of flight of the signal between two asynchronous transceivers (Transceiver) to measure the distance between nodes. Its main feature is high-frequency ranging.

Product Details:

        Industrial laser distance sensors, also known as secondary laser distance modules, support TTL levels and CMOS. Laser ranging sensors can be widely used in professional surveying and mapping, construction, mining exploration, Internet of Things systems, intelligent transportation, warehousing and logistics, robots, bow and arrow measurement, industrial monitoring and agricultural automation measurement and other fields.

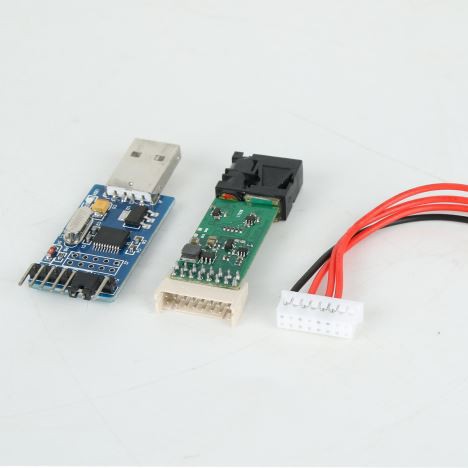

      HSLD01 is a new generation of ultra-small single-point ranging laser radar module developed by our company. It has the characteristics of fast measurement speed (100 ~ 300Hz), high measurement accuracy, simple installation and operation, and is suitable for obstacle avoidance of robots such as drones / AGV vehicles. , Positioning and monitoring of dynamic targets and industrial control measurement and other fields.

TOF Laser Sensor Features:

1.The indoor measurement distance is up to 50m, and the black target can also reach ~ 15m distance

2. The measurement distance is up to 15m in outdoor sunlight;

3. The working principle of TOF, up to 200hz measurement frequency, for some moving targets, it can detect the target well;

4. High and low temperature resistance-0 ~ +50 ℃;

5. Compact size, width 26mm, length 50mm, height 13mm;

6. UART TTL / RS485 level output the distance value of the measured object, simple and easy to use;

Technical parameter

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us
