Intelligent Laser Measuring Tool High Performance TOF Ranging Module

Laser Distance Module

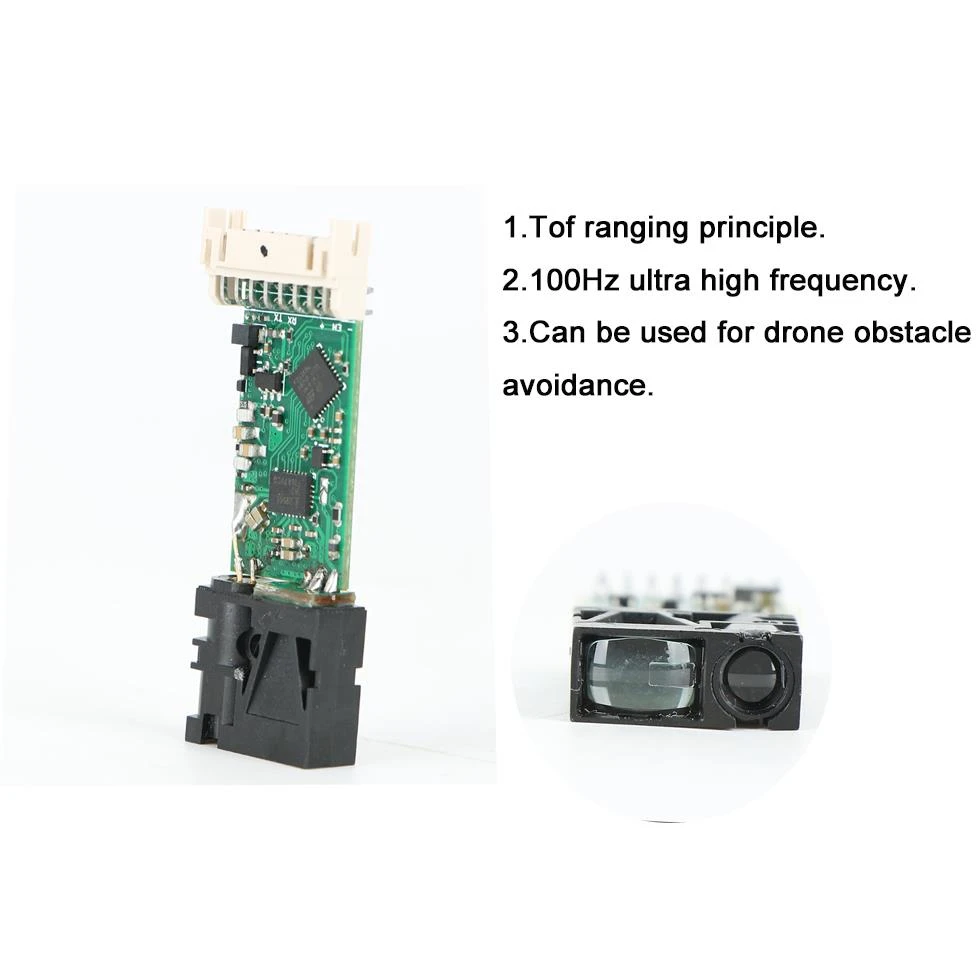

There are many types of proximity sensors, including infrared and ultrasonic. The distance is mainly estimated by measuring the amount of reflected light. The main disadvantage is that the color and surface of the measured object greatly affect the measurement accuracy. The new product launched by JRT, TOF laser ranging sensor, uses time-of-flight ranging technology to calculate the time difference between the emitted and returned laser photons, that is, to calculate the time-of-flight (FoT) scheme for distance measurement. Higher speeds and lower power consumption.

Parameters:

Accuracy: +/-3cm@70% reflectivity

Resolution: 1cm

Measuring Range: 0.1-12m@70% reflectivity

Frequency: 100Hz

Laser Class: Class II

Laser Type: 650nm, <1mw,red

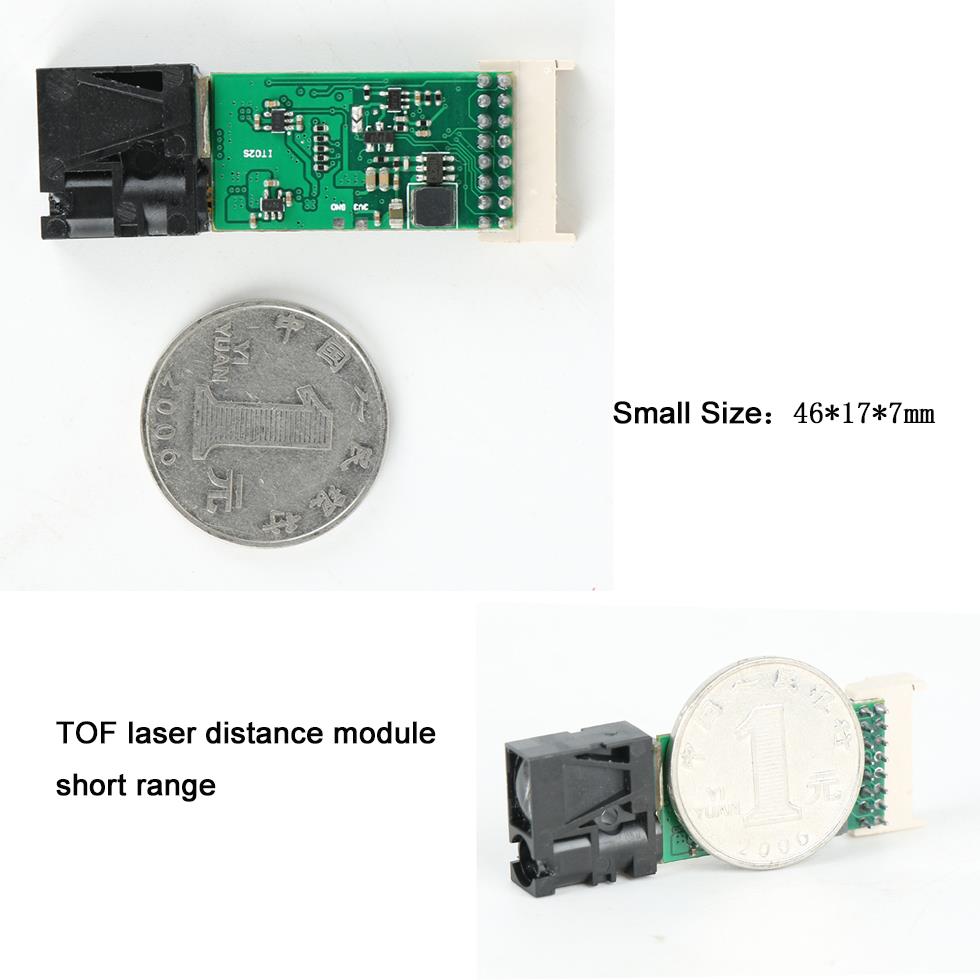

Size: 46*17*7mm

Weight: About 4g

Voltage Working range: +3.3V

Electrical Level: TTL/CMOS

Communication interface: UART,115200bps(default)

Operating Temperature: 0-50 ℃

Storage Temperature: -25~60 ℃

Tof sensor advantages: 100Hz, 3cm-8cm accuracy, short range 0.1-12m

Application

In automotive applications, ToF can be used for anti-collision automatic braking; In logistics applications, TOF products can be used in warehouse logistics robots.

About JRT

QC:

(1) Quality management of raw materials and products. Strict inspection and acceptance of raw materials will be carried out, and management will be strengthened to ensure timely supply.

(2) For the management of packaging quality, since the laser ranging module is a precise measurement of electronic products, we have formulated packaging standards based on the characteristics of the product and use double-layer foam boxes for protection.

(3) Internal quality inspection and audit, we have special testing equipment and several quality inspectors to carry out quality inspection on products.

(4) Strictly control each link of product sampling and testing, keep improving, and select quality; strictly follow international standards and follow international market guidelines.

Some Questions For You:

1.Q: Can I use it in continual measure mode?

A: Yes. JRT's time of flight sensor supports continual function.

2.Q: How much is the tof sensor accuracy?

A: The accuracy range is 3cm~ 8cm, for specific accuracy, it will be affected by your using environment.

3.Q: How can I output the measurement data?

A: Tof sensor support serial interface with RX,TX.
