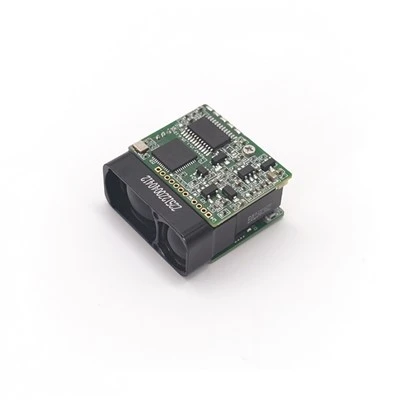

Laser Measurement Module
The sensor is JRT M-series short-range distance measuring instrument that measures the range of target objects up to 60 meters away.
Laser receiver module
The Product Described:
The sensor is JRT M-series short-range distance measuring instrument that measures the range of target objects up to 60 meters away. The product is capable of providing accurate measurements with minimal impact on the target color and surface. Distance measurements can be read in a variety of ways and can operate from an input voltage range of 2.0V to 3.3V
Technical Parameter:
Size: 45 * 25 * 12mm
Weight: About 21 grams
Operating voltage: 2.0 V to 3.3 V.
Distance measurement range: Up to 60 meters; effective range depends on configuration, target and environment. The data sheet does not specify a minimum range, but according to our measurements, the effective limit is approximately 3 cm.
Accuracy: +-1mm
Laser Class: Class II
Shipping:
The laser rangefinder is only 45 * 25 * 12mm in size and weighs only 21g, which is of high value. In order to ensure the safe transportation of the products, I usually use the express mode to transport, which is beneficial to improve the speed and quality of transportation.
Details:
