20m Smaller Electronic Distance Measurer Sensor
Product model：U85-20m(k208271)
Product Name: laser distance meter sensor
Measuring Range: 0.03-20m
Frequency: 3Hz
Size：41*17*7mm
Weight：About 4g
This laser rangefinder module is one of JRT hot-sales model laser meter sensors. It has a small size, millimeter high precision laser rangefinder sensor. The distance range is up to 20 meters, and it can be used in various scenes, such as building construction, engineering surveying and mapping, and interior decoration etc.
20m Smaller Electronic Distance Measurer Sensor
Hello,
This laser rangefinder module is one of JRT hot-sales model laser meter sensors. It has a small size, millimeter high precision laser rangefinder sensor. The distance range is up to 20 meters, and it can be used in various scenes, such as building construction, engineering surveying and mapping, and interior decoration etc.
Are you looking for a electronic distance measurer and developing a system to measure short range? The U85 is the smallest size distance sensor in the world, it's good for customers to integrate to your device. It can measure up to 20m close range with +-1mm accuracy.
20m Laser Distance Sensor Highlights:
1. Smaller size: 41*17*7mm
2. It can be used to OEM your own laser distance meter.
Specifications of Laser Distance Sensor:
Production Number | U85-20m(k208271) |
Certification | FDA/ISO9001 |
Place of Origin | Chengdu,Sichuan |
Precision Accuracy | ±1 mm |
Measuring Unit | mm |
Measuring Distance (without Reflection) | 0.03-20 meters |
Measuring Time | 0.3~4 seconds |
Laser Class | Class II |
Laser Type | 620-690nm, 1mW |
Volume | 41*17*7mm (±1 mm) |
Weight | About 4g |
Power supply voltage | DC2.0~3.3V |
Electrical Level | TTL/CMOS |
Frequency | 3HZ |
Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
Storage Temperature | -25~60 ℃ (-13~140 ℉) |

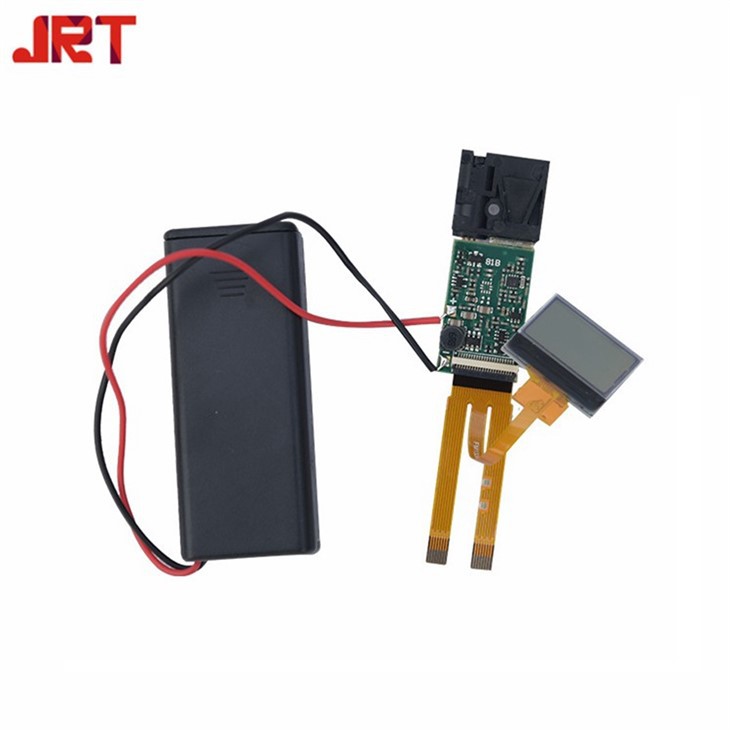

Product picture
Electronic Distance Measurer Sensor Thickness
Electronic Distance Measurer Sensor Diagram
The finished product of electronic distance measurer sensor is widely used in:
Distance measure, Engineering survey, Warehousing Logistics, Interior design etc.
Why Us
1. Factory. JRT manufactured laser distance modules since 2004, as the one of three leading laser industtry company in China. Support OEM and ODM service. Welcome to visit us.
2. Small size. We insist on R&D of smaller size laser ranging modules, for now our smallest size is 41mm*17mm*7mm, 4g, which is miniature as a pen.
Factory picture
For more info, please feel free to contact us
