15m Range Of Ir Sensor

Industrial Distance Sensor Model: C5B11(k230315-1)
Measuring Range: 0.03m -15m
Frequency: Up to 10Hz
Dimensions：41*17*7mm
Weight：4g

Send Inquiry

15m Industrial Automation Mini Ranging Sensor RXTX Arduino

This mini laser measuring device is suitable for short range measurement and fast measurement. The size of laser measuring ir sensor is about 41*17*7mm, as small as your thumb. The compact design allow it to be integrated into other structures without taking up space. What's more, the accuracy of this ir sensor has achived +/-1mm, many precision works can be done with this intelligent distance module. The 10Hz frequency also allows it to measure the moving objetcs.

Arduino 15m Mini Laser Ranging Sensor

Products Description

Range: 0.03 - 15m
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1mm
Measuring time: 0.1-4s
Measuring frequency: Up to 10Hz
Laser type: Class 2, red
Interface options: Serial/TTL/rs232/rs485/Bluetooth
Voltage：DC 2.5~3V
Size: 41*17*7mm
Weight：4g
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Laser distance sensor working principle

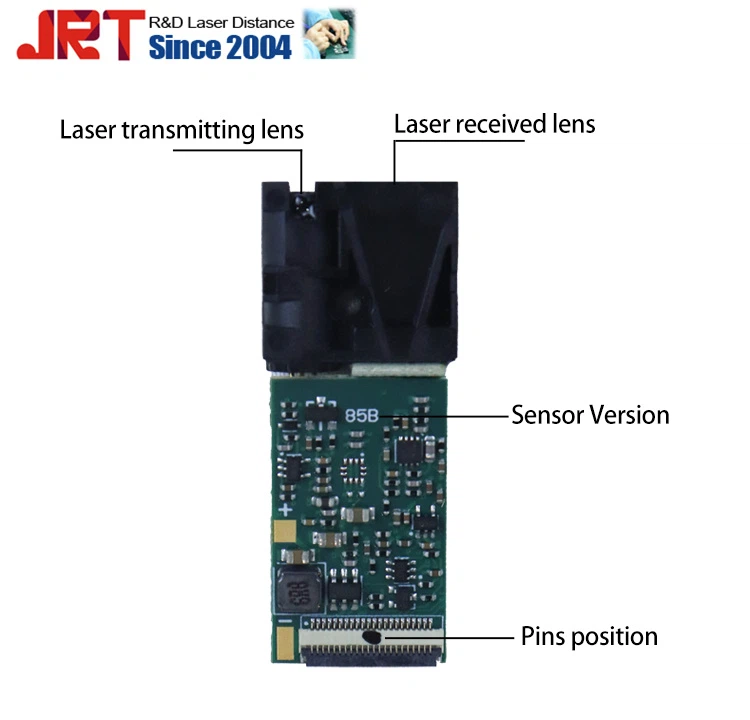

Fast Measurement 15m Mini Device

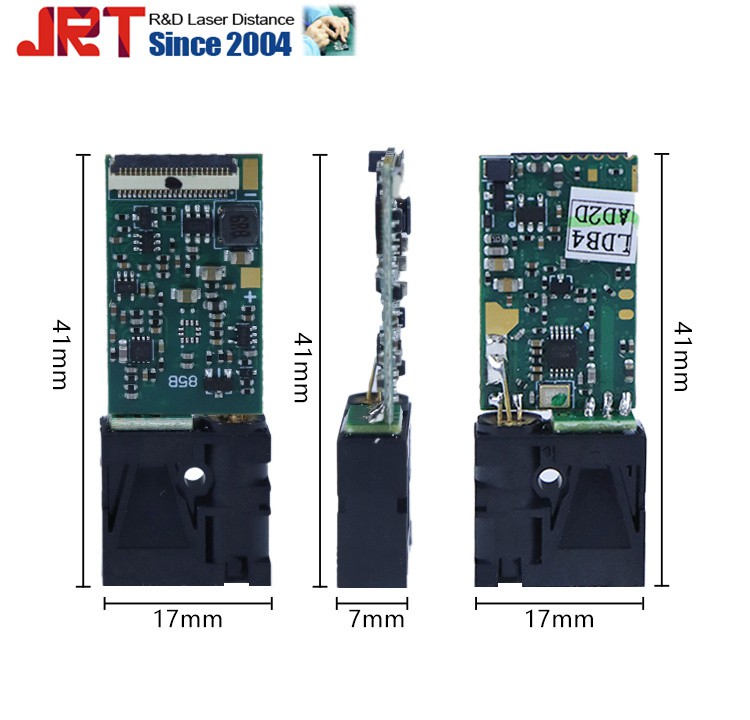

Products Size

This is a small laser sensor with +-1mm high accuracy, that can measure 15m.

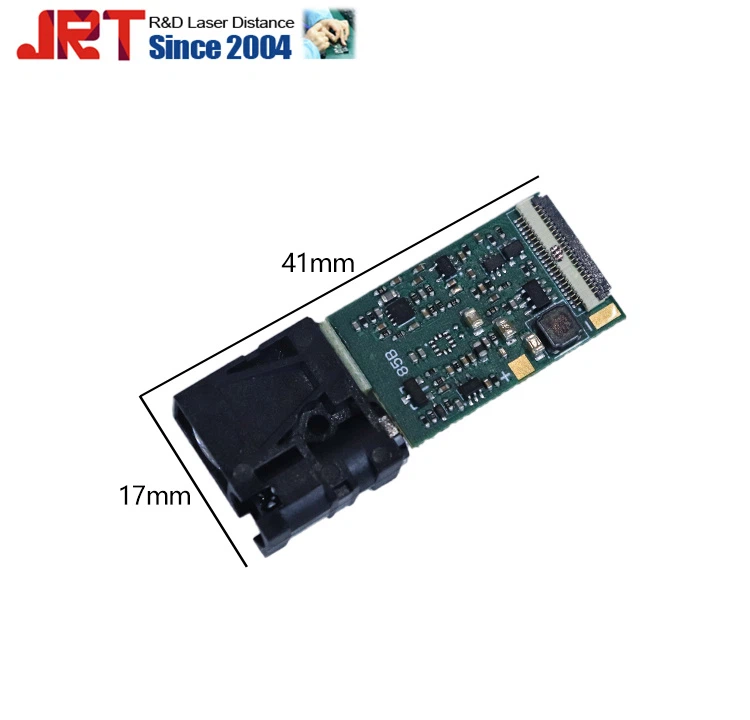

15m RXTX Laser Ranging Sensor

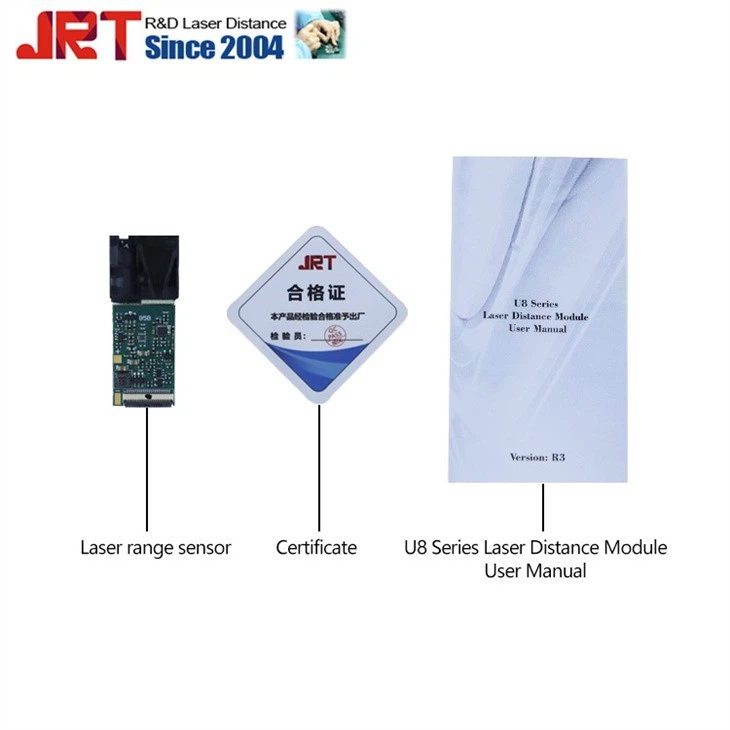

Laser Ranging Sensor Sample accessories

1* laser ranging module
1* USB connector required an additional purchase(please tell your Sales Engineer you need that), as it's convenient for your first sample test.
1* Certificate of qualification
1* Laser measuring sensor user manual

7 4

FAQ

Q: Can Mini Ranging Sensors be OEM/ ODM?

We provide OEM/ODM services. If you have this need, you can directly send your logo to us, we will print your logo on the product.

Q. What advantages do you have over your peers?

1. We are a factory direct seller for Mini Ranging Sensor with affordable price and guaranteed product quality.
2. We have a professional technology research and development team, which has been certified for several products in the Mini Ranging Sensor industry.
3. We are a Chinese government supported and key support company, strictly controlling the quality production of Mini Ranging Sensors.
4. We have a complete production line, one product one production line. Ensure that your products are finished with quality and on time.

Q. Do you provide samples of Mini Ranging Sensor?

A: We can provide samples of Mini Ranging Sensor for you to test. Samples can be transported by sea, land and air.

Q: Do you have an installation manual for the Mini Ranging Sensor?

A: Each of our products comes with a manual for installation and operation. It is convenient for you to use the product correctly.

Mini Distance Sensor Industrial Automation Arduino

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
