2000m Laser Rangefinder Binoculars
Rangefinder Transducer Model: LRF2km-1(k240614-1)
Laser: 905nm±5nm
Blind area: ≤5m
Frequency: 1Hz
Dimensions: 32*20*25mm
2000m Laser Rangefinder Binoculars
The laser range finder sensor is 905nm pulsed principle range sensor with 2000m long measuring distance. As the rangefinder binoculars module is characterized by small size and light weight, it can be integrated easily with you device.
Technical parameters
Laser wavelength: 905nm±5nm
Ranging blind area: ≤5m
Ranging capacity: ≥2000m(target: large target, visibility: ≥10km, humidity: ≤60%, target reflection coefficient: 0.3)
Ranging accuracy: ≤±1m(≤400m), ≤±(L×0.3%)m(> 400m)
Ranging frequency: 1Hz
Power supply voltage: 3V ~ 5V
Average power consumption: ≤2W
Dimensions: 32mm (L) ×20mm (W) ×25mm (H)
Weight ≤18g
Working temperature: -20℃ ~ +60℃
Storage temperature: -30℃ ~ +70℃

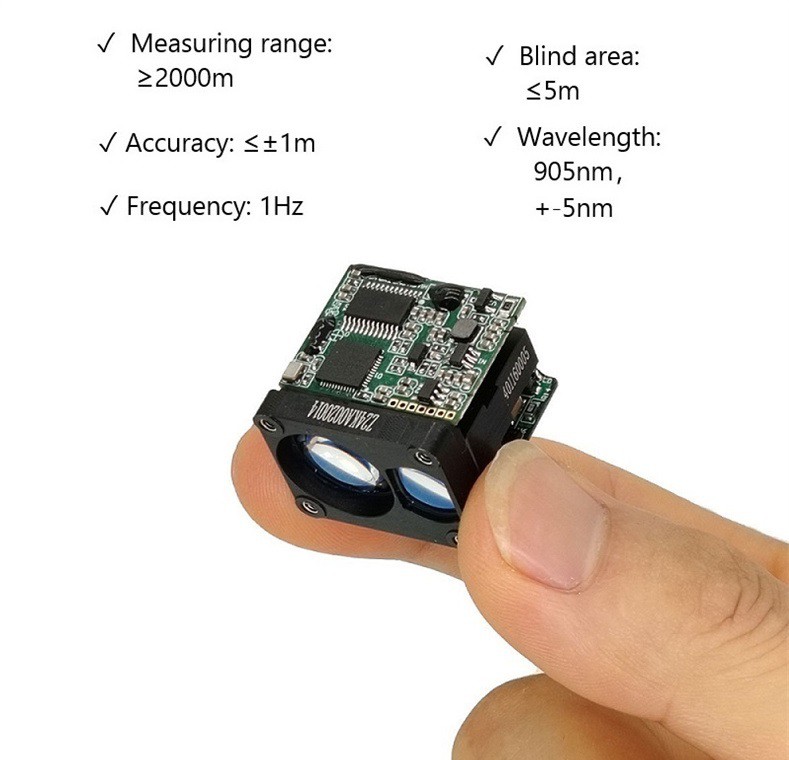

Picture Show
Mechanical Dimensions
Laser laser rangefinder sensor Applications
How to pack your samples of this 2000m range sensor?
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Rangefinder Module, TOF High Frequency LiDAR Sensor, Instrument And Measurement Tools.
For more info, please feel free to contact us.
