60m Serial Raspberry Pi Distance Sensor
60m Distance Sensor model: M88B-k2008192in
Measuring Range: 0.03-60m
Frequency: 3Hz
Size：45*25*12mm
Weight：About 10g
60m serial raspberry pi distance sensor
Product Description:
M88B is the updat version of M703A, it can measure longer distance of 60 meter. With serial port, customers already connected to their raspberry pi successfully. The 60m raspberry pi distance sensor is a puplar style for USA. Welcome to contact us for more.
60m Distance Sensor Highlight:
1. 0.03m to 60m long distance good for outdoor using.
2. Serial port is easy to use with RXTX wires.
Specifications of Laser Distance Meter Sensor:
|
Brand Name |
JRT/Support OEM service |
|
Production Number |
M88B-k208192in |
|
Certification |
FDA/ISO9001 |
|
Place of Origin |
China |
|
Precision Accuracy |
±1 mm |
|
Measuring Unit |
mm |
|
Measuring Distance (without Reflection) |
0.03-60 meters |
|
Measuring Time |
0.125~4 seconds |
|
Laser Class |
Class II |
|
Laser Type |
620-690nm, 1mW |
|
Volume |
45*25*12mm (±1 mm) |
|
Weight |
About 10g |
|
Power supply voltage |
DC2.0~3.3V |
|
Electrical Level |
TTL/CMOS |
|
Frequency |
3HZ |
|
Operating Temperature |
0-40 ℃ (32-104 ℉ ) |
|
Storage Temperature |
-25~60 ℃ (-13~140 ℉) |
Product picture
Detailed picture for distance measurement sensors working principal:
Hardware Connections
1. Hardware Interface: 2 line USART(Rx, Tx);
2. Baudrate: 19200bps;
3. Data bits: 8b;
4. Parity: none;
5. Flow control: none.

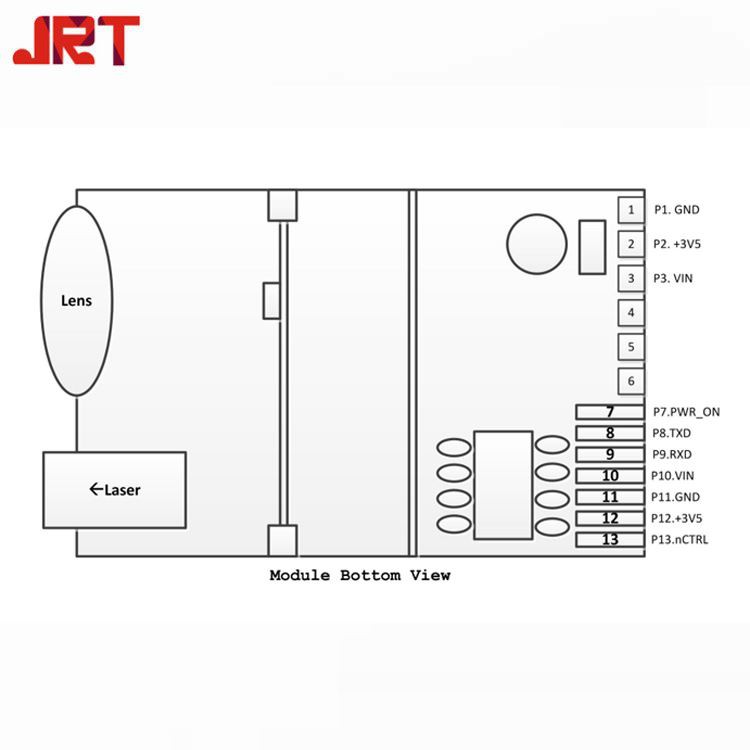

Diagram information
WorkshopAccurate World Smallest laser distance sensor: 41*17*7mm-U85
FAQ for purchasing manager：
1. Q: Are you a factory or a trader?
A: We are a manufacturer in China since 2004, so If you need competitive price, we can support you at the wholesale price.
2. Q: Can you provide customize service?
A: Yes, please send us the reuirements files, so we can estimate the time for you.
CertificationOur raspberry pi distance sensor has CE, FCC, FDA etc. certification.
