Archery Rangefinder 1200m

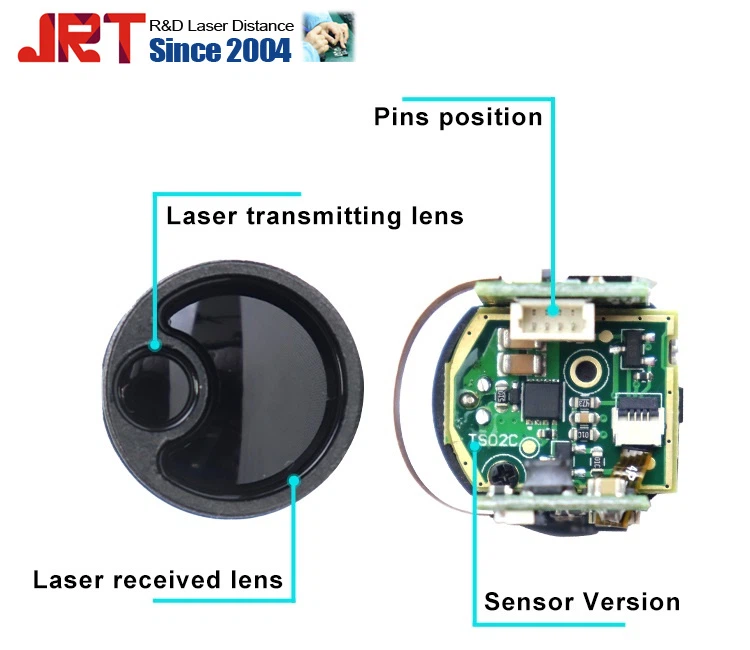

Rangefinder Sensor Model: TC22L-1200m(k230223-5)
Measurement accuracy: ±0.5m
Measurement Range: 3m -1200m@70% Reflectivity
Laser Class: 905nm laser
Weight：15g
Dimensions：43*φ22mm
Device
With the development of laser ranging technology, the laser sensor device has been used in more and more fields such as archery rangefinder. With laser measure function, the archery acitivities can be accurate and easier. By knowing the distance of the object, the archer can better aim the goal and judge the direction. TC22 is designed for aming and other applications which need accuracy range measurement. Choose JRT you will get the best quality and service.
Product Parameters:
Range: 3 - 1200m
Measuring accuracy: ±0.5m
Resolution: 0.1m
Working Voltage: 2.5~3.5V
Laser Type: 905nm

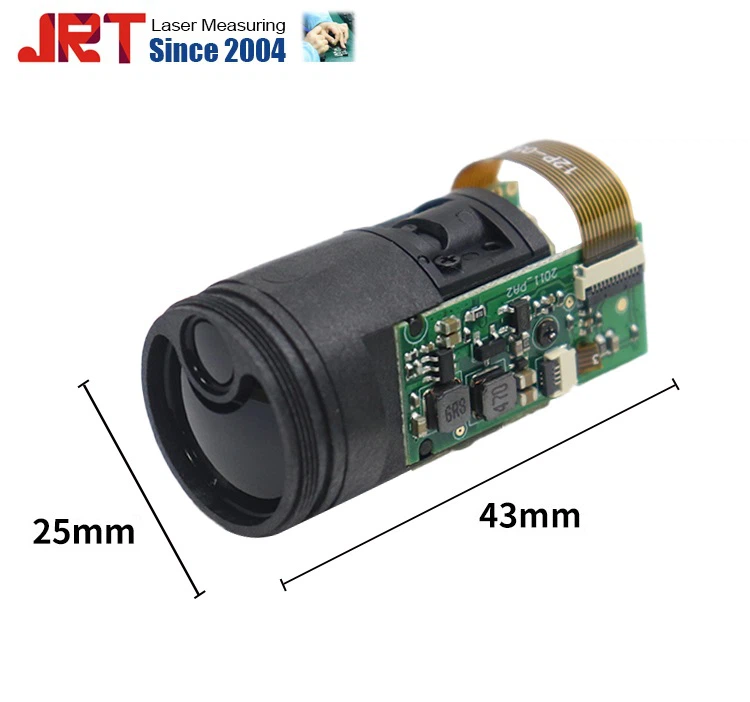

Size: 43*φ22mm (43mm long, 22mm diameter)
Weight：15g
Current: 100mA
Power: 330mW@3.3V
Baud rate: 115200bps (default)
Working temperature: 0-50 ℃(Lower temperature can be customized)
Storage temperature: -20 ~ 50 degree
Q: What advantages do you have over your peers?
2. We have a professional R&D team, which has obtained a number of product patent certifications in the Laser Measuring Solutions industry.
3. We are an enterprise supported and supported by the Chinese government. We strictly control the quality and production of our products.
4, we have a perfect production line, in strict accordance with product quality control production, to ensure that your products are quality and timely completion.
Q: Do you accept ODMs and Oems?
Our research and development capabilities have enabled us to successfully help our customers grow rapidly, whether it is Laser Measuring private label products or Laser Measuring white label products, depending on the needs of our customers. We also produce for some of the top Laser Measuring importers. In this way, the two companies can benefit from each other. Perfection is key to our business and we know that our customers expect top-notch quality - we are one of those OEM suppliers in the market that is small in quantity and well beyond the standard
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
