635nm Laser Equipment For Measuring Distance Industrial Measurement

The JRT laser ranging sensor is used as a non-contact measurement. Our laser range sensors are available for long-range measurement in millimeter precision. The B605B laser distance sensor module has a farther range than the B87A module, and the range can be up to 150 meters, making it ideal for outdoor long-distance measurements. It has better performance outdoors and faster response times. Among all these optical sensors for distance measurement, the JRT B87A laser sensor is small and cost-effective.

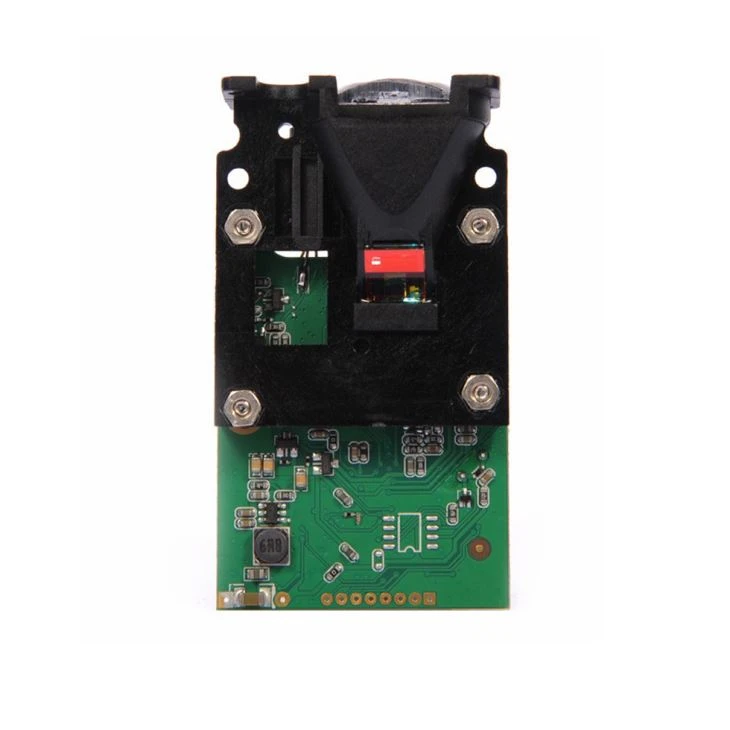

Features of B605B laser distance measurement sensor module

1. Product Dimension: 40mm width, 72mm length, 18mm height

2. Weight: < 18g

3. Precise Distance Measuring: 1mm resolution

4. Long Measuring Distance: 150 meters

The principle of operation of the laser ranging sensor:

First, the laser pulse is emitted by the alignment policy, and then the laser is scattered in various directions after being reflected by the policy. Part of the reflection will come back to the sensor and then receive the image and then reach the avalanche photodiode. A diode is an optical sensor with an expanded function. Therefore, he can feel the weaker light signal, record and deal with the time spent from the time the light pulse is sent back to the time it is accepted, which can determine the policy distance.

Application range:

1. The crane is positioned with two reflective sensors facing the reflector, and the reflector is mounted on the two mobile units of the overhead crane. One unit moves back and forth and the other moves left and right. When the crane drives the plate roller, the two sensors monitor the distance to the reflector and the PLC can continuously track the exact position of the crane. With this new type of transmission time laser ranging sensor, reflective or multi-color target long-range position detection is no problem even when detecting angle changes.

2. Height limit measurement, building limit measurement; ship safety stop position monitoring, container positioning.
