10m Short Distance Sensor
Short Range Laser Distance Sensor: SW85-10m(k230406-3)
Measuring Range: 0.03~10m
Measuring Accuracy: ±2mm
Measuring Frequency：3Hz/10Hz/20Hz
Laser Type：620~690nm, <1mW
Size：16*17mm,25*17mm
Weight：4g
Electrical Level：TTL/CMOS
Operating Temperature: 0-40 ℃
Success Case
FPC flexible cable design, easy to install, can be widely used in industrial automation, agricultural automation, warehousing logistics, automobile collision avoidance measurement, construction industry etc.
10m Short Distance Sensor
If you need a short distance laser ranging module, our SW-85 is a good choice for you, this product has a small size, high precision, and range measuring distance ability is excellent, if you have the demand, come to buy!

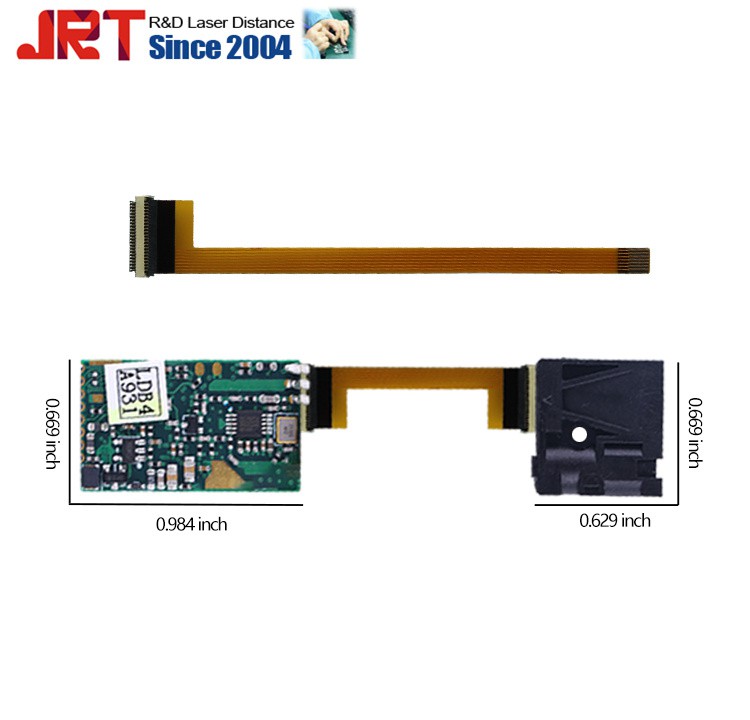

10m FPC Laser Distance Sensor Size:
In a small size, you can integrate our ranging modules into your outdoor applications.
10m FPC Laser Distance Sensor Parameter:
Short distance sensor: SW85-20m(k230406-2)
Accuracy: ±1mm
Measuring Unit: mm
Measuring Range: 0.03~10m
Measuring Time：0.4~4s
Laser Class：Class II
Laser Type：620~690nm,
Size：25*17mm, 16*17mm
Weight：4g
Voltage：DC2.5~3V
Electrical Level：TTL/CMOS
Interface: USB/RS-232/RS-485/Bluetooth etc.
Frequency:3HzOperating Temperature: 0-40 ℃
Storage Temperature: -25~60 ℃
10m FPC Laser Distance Sensor Parameter:
10m FPC Laser Distance Sensor Application Field:
The manipulator detects its own state through the internal sensor of the sensor, such as position, speed, acceleration, etc., to realize the interaction between itself and environmental information (distance, temperature, force, etc.), and the environmental information is detected by the external sensor. Then, the controller selects the corresponding environmental mode to direct the manipulator to complete the task.
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
For more info, please feel free to contact us
