15m Laser Measuring Tool Sensor
Short Laser Measuring Sensor：C5B12(k230315-4)
Measuring Range (without Reflection) ：0.03-15m
Measuring Time：0.1~4 seconds
Laser Class：Class II
Laser Type：620nm~690nm, <1mW
Size：41*17*7mm
Weight：About 4g
Voltage：DC 2.5~3V for U8XB

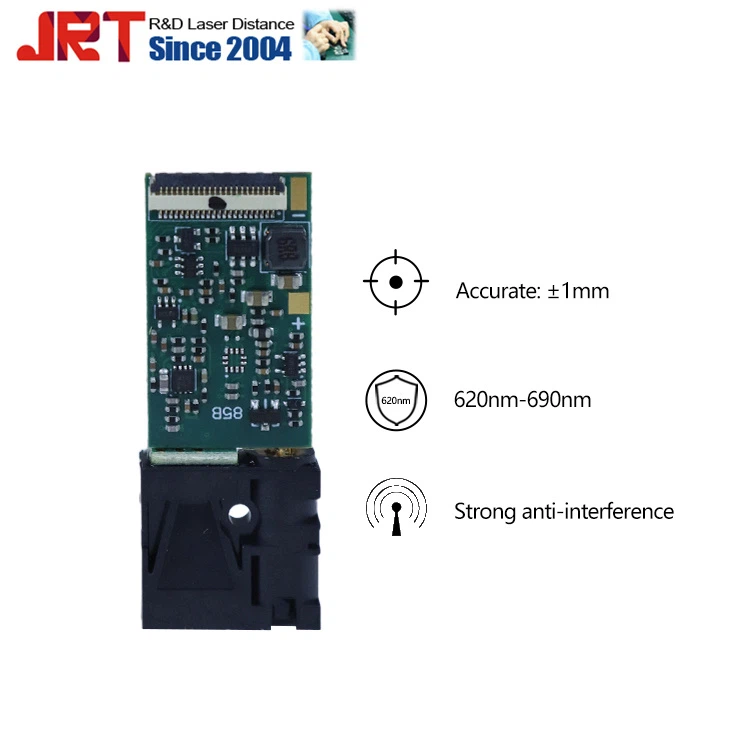

15m laser measuring tool sensor UART
It is the smallest laser measuring tool sensor of the world. It has 15m range and 20hz frequency with the accuracy ±1 mm. If you need the short range distance measuring sensor, this product is your best choice!

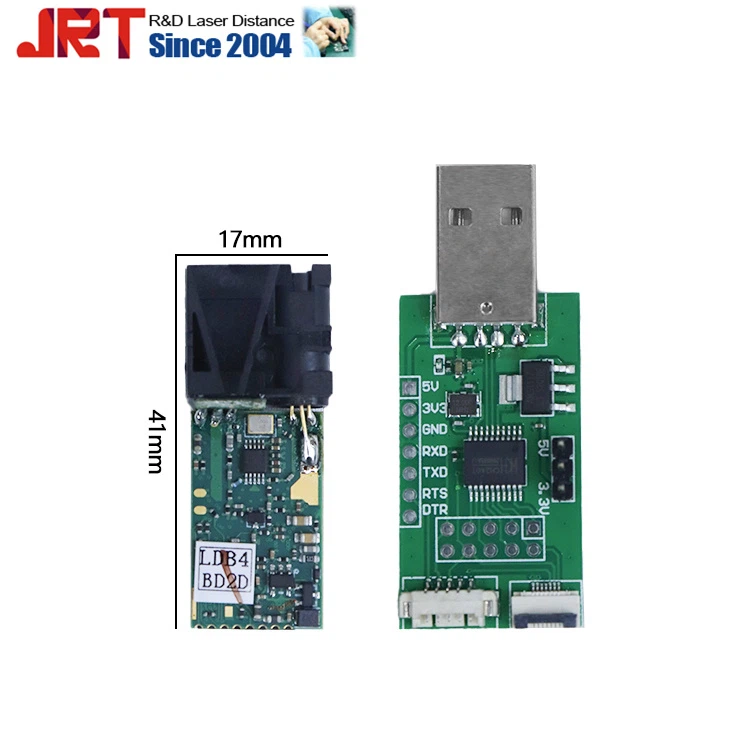

15m Laser Distance Detector & USB connector

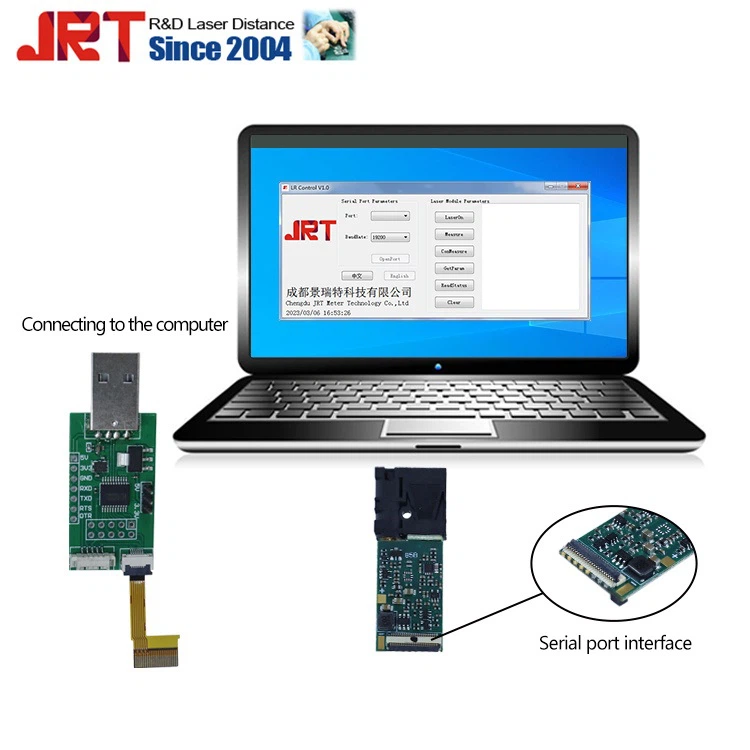

USB adapter model is designed for customers that help test easily.
15m Laser Distance Detector Parameters:
Laser Measuring Sensor Model：C5B12(k230315s-4)
Measurement Range (without Reflection) ：0.03-15m
Measurement Time：0.1~4 seconds
Laser Class：Class II
Laser Type：620~690nm, <1mW
Size：41*17*7mm
Weight：About 4g
Voltage：DC 2.5~3V for U8XB
Measurement Frequency: 20Hz
Operating Temperature：0-40 ℃
Storage Temperature：-25~60 ℃
15m Laser Distance Detector Quality Commitment:
1. The manufacturing and testing of products are in line with national standards.
2, the product has professional inspection personnel to test, to ensure that the indicators of the product meet the requirements of the exporter.
3. We are willing to assume all responsibilities for any quality problems of our products within the warranty period.
Note:
1. Under poor measurement conditions (such as the ambient light is too strong, the measured point diffuse reflection coefficient is too large or too small), the measurement accuracy will have a large error: ± 3mm +40PPM.
2. In the case of strong sunlight or poor reflection of the target, please use the reflector plate.
3. If the working temperature range is -10 C° ~ 50 C°, it needs to be specially customized.
15m Laser Distance Detector Applications:
1Thermal lmaging:The laser produces and sends a pulse of light, which hits and reflects off an object and is eventually picked up by a receiver. The principle of ground measurement from a flying vehicle in the air is the "dual path" time measurement method. That is, it only needs to record the time of laser signal from the laser to the return, combined with other data, it can accurately calculate the accurate X, Y, Z coordinates of the ground spot.
2Intelligent Robot:Laser range sensors can be used for robot navigation, obstacle avoidance and path planning. They enable robots to detect and avoid obstacles from a distance, ensuring safe operation even in complex or changing environments.
FAQ
Q: Can I order a sample laser measuring tool sensor UART?
A: Yes, we accept samples for trial.
Q: What is the delivery time?
Q: Can I use the logo on laser measuring tool sensor UART?
A: Yes, we can put a logo on our products for our customers.
Q: How will it be delivered to foreign buyers?
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
For more info, please feel free to contact us
