LiDAR Sensor for Raspberry Pi

10m TTL Short Distance Ir Sensor Raspberry Pi

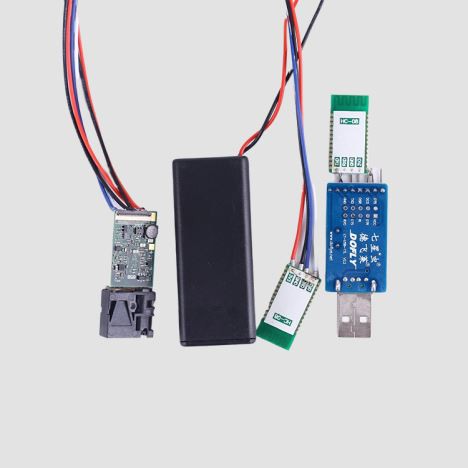

The short distance Ir sensor U85 is a mini size module only weigh 4g,  so it can be intergrated into other device without taking too much space. Measuring range from 0.03m to 10m, the laser distance sensor has +/-1mm high precision. So the mini laser distance module is an ideal instrument for professional and indutrial measurement needs such as intelligent transportation, collision avoidance system, medical equipment and mechanical arm etc.

Technical Specifications

Range: 3cm - 10m

Invisible measuring: 620nm ~ 690nm

Measuring accuracy: +-1mm

Measuring time: 0.04-4s

Measuring frequency: Up to 3Hz

Laser type: Class 2, red

Interface options: Serial/TTL/rs232/rs485/Bluetooth

Size: 41*17*7mm

Weight：4g

Working temperature: 0 ~ 40 degree

Storage temperature: -25 ~ 60 degree
