Phase Shift Distance Measurement Lasaer Sensor Module

1mm high resolution laser module & Phase Shift Distance Measurement Lasaer Sensor Module

Product Description:

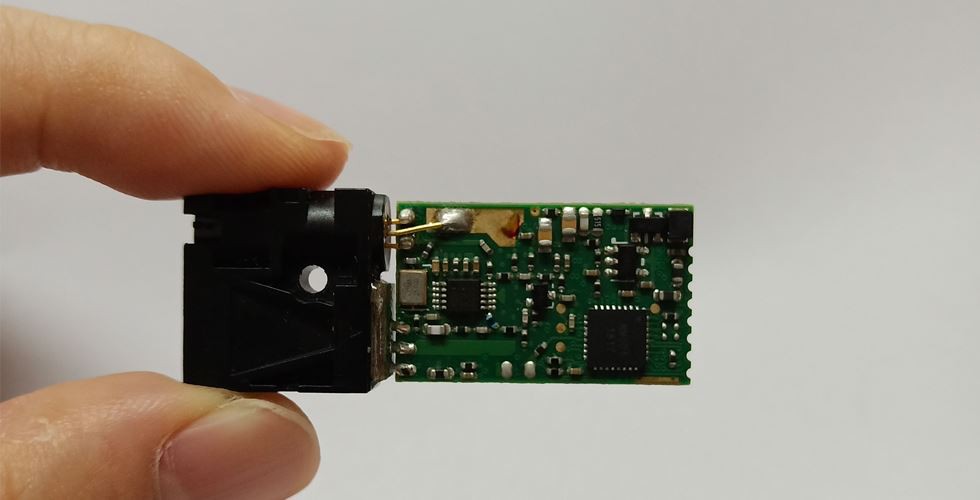

The model of U81 Mini High Precision Laser Distance Sensor is a small laser measurement sensor with 20m range. The model of U81 is a laser range finder with high precision and fast measurement. It is small in size and weight only about 10 grams. Whether it's interior design, distance measurement, building or even furniture measurement in daily life, U81 can handle it easily.

advantages

——3S

• Small size, 41*17*7mm.


• Strong measuring ability up to 20m.

• Stable measurement.

——3E

• Extremely higher cost performance

• Efficient and Accurate: The measurement is performed in a non-wearing, non-contact manner with 1mm accuracy.

• Easy to integrate: standard interface and compact design, easy to install.

——3F

• Fast response 0.4~4s

• Flexible: can be used indoors and outdoors (if a reflector is added outdoors, it is more conducive to measurement)

• Five hot product series: high-accuracy, high-frequency, ToF, LiDAR, high-protection etc., you can choose the suitable for your project.




1. Accuracy: ±1 mm (0.04 inch)

2. Frequency: 3HZ (20Hz can be customized)

3. Measuring distance: 0.03-20m

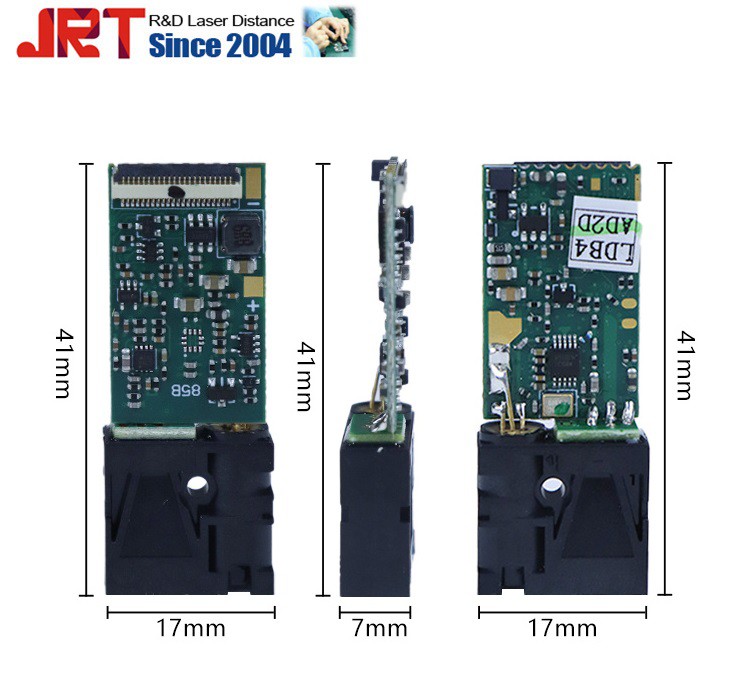

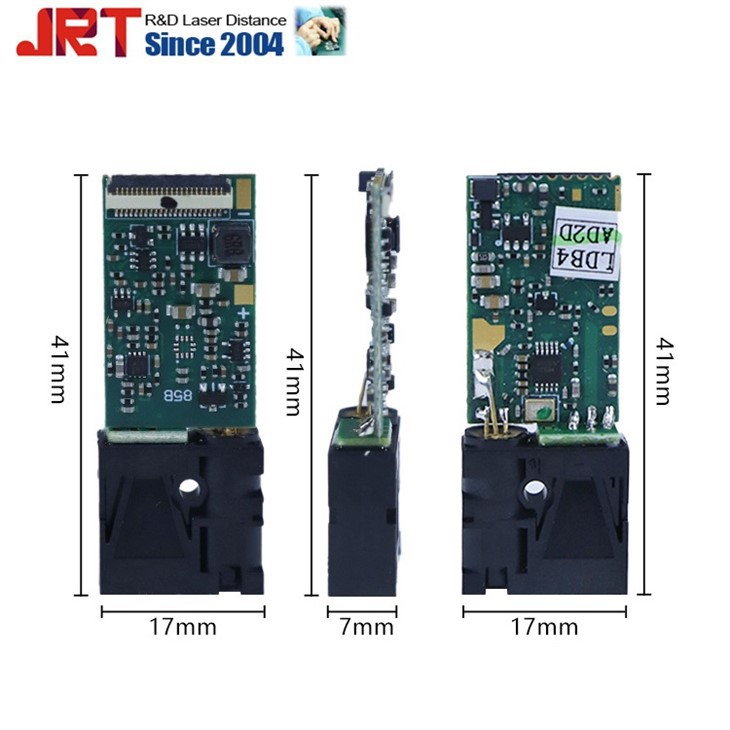

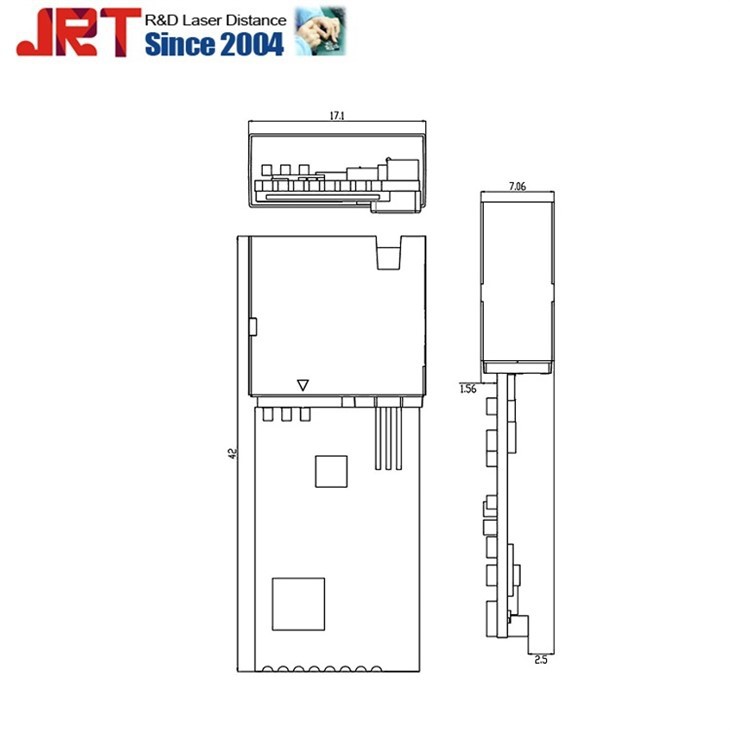

4. Size: 41*17*7mm

5. Working temperature: 0-40 degrees Celsius

Notes:

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3. 0.1mm resolution can be customized.

Applications

Automation: level measurement, process control

Industrial metrology: non-contact distance, length, and height measurement

Transport and logistics, conveyor technology: distance and height measurement, vehicle detection, collision avoidance

Steel production and rolling mills: process control, detection, position measurement and thickness measurement for slabs

After-sale service
 a. Lifetime warranty for software
 b. 1 year warranty
 c. Lifetime Technical support

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us
