1500m Small Rangefinder Sensor
Night Vision Telescope Model: TC25-1500M(k230306-8)
Measure range: 3- 1500m
Accuracy: ±0.5m~±1m

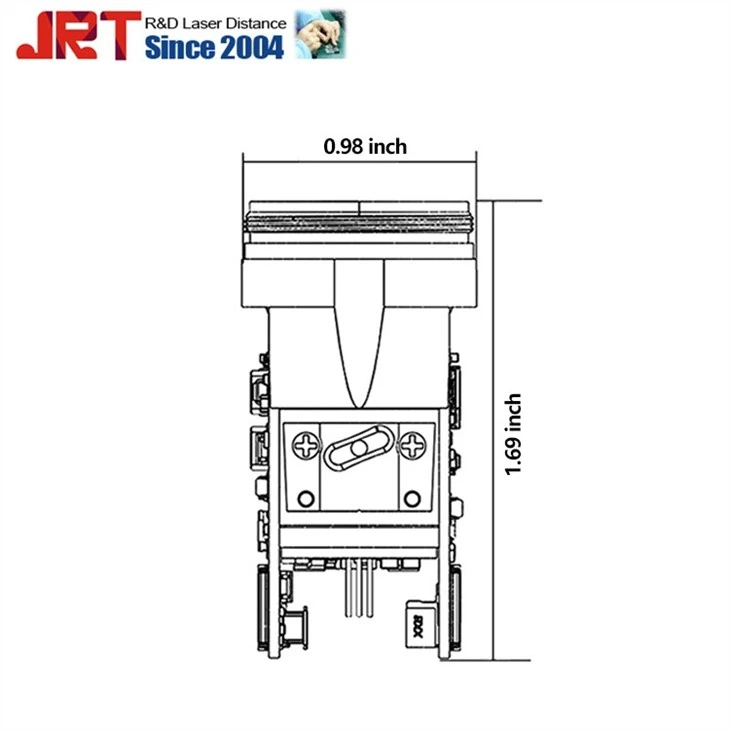

Volume: 43*φ25mm
Resolution: 0.1m
Weight：15g
Working Voltage: 2.5 ~ 3.5V
Applications: gun vision night vision, drone pod, infrared thermal imaging, etc.

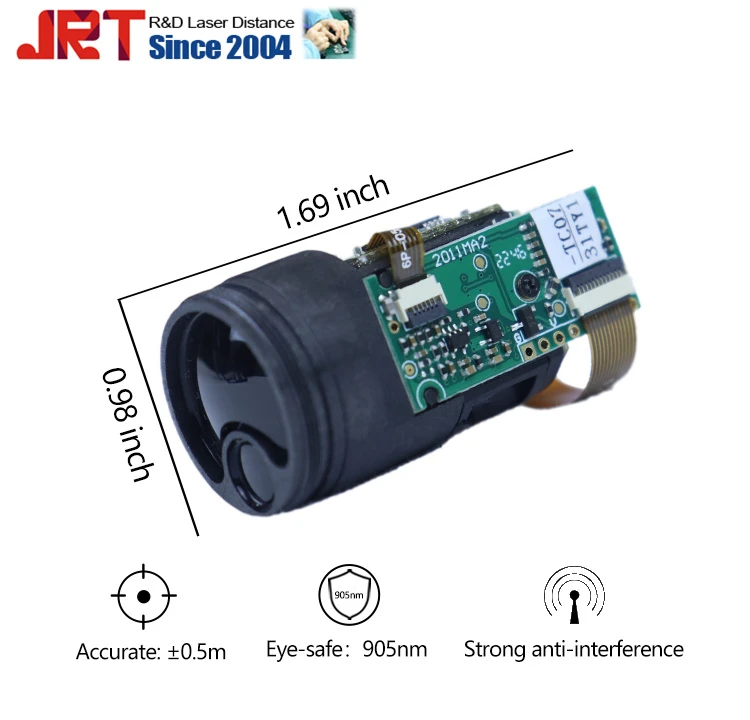

Small laser ranging module for Night Vision Telescope.
A laser rangefinder moulde with small volume, which can be easily Integrated into a Night Vision、Monoculars、Gun Scope. The low voltage requirements of this product can make it easy to become a long endurance product. For the accuracy, this product has the accurcy of 0.5m to 1m with resolution 0.1m. As well as the short measuring time: less than 1s.
Accuracy: ±0.5m~±1m

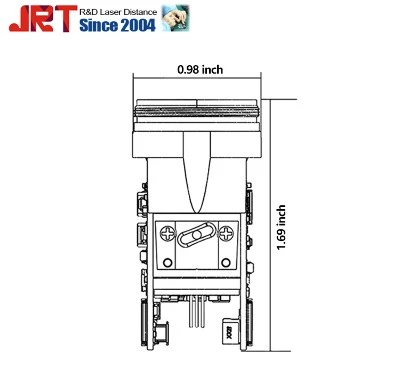

Volume: 43*φ25mm
Resolution: 0.1m
Weight：15g
Working Voltage: 2.5 ~ 3.5V
Measuring time: less than 1s
Baud rate: 115200bps
Light: 905nm laser
Laser class: Class Ⅰ
Operating Temperature：-20~50℃

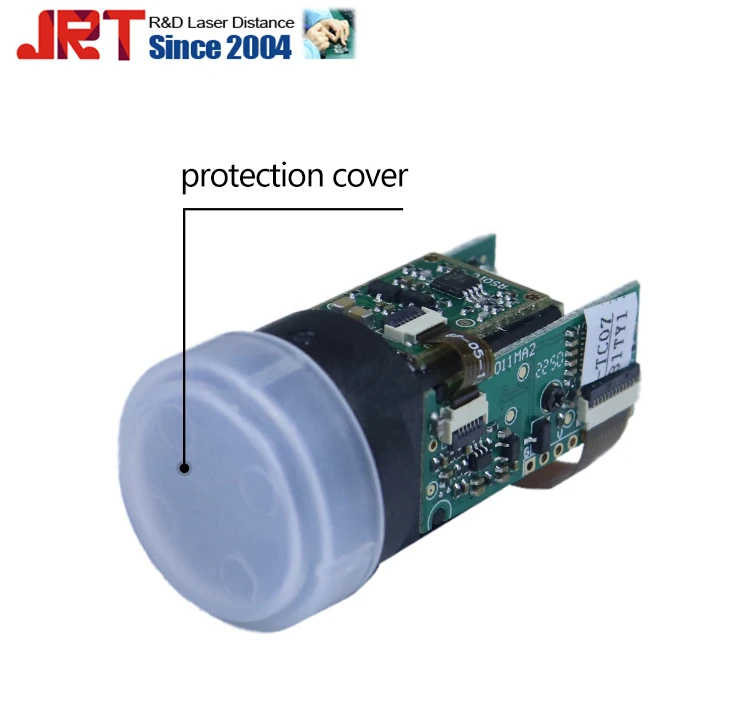

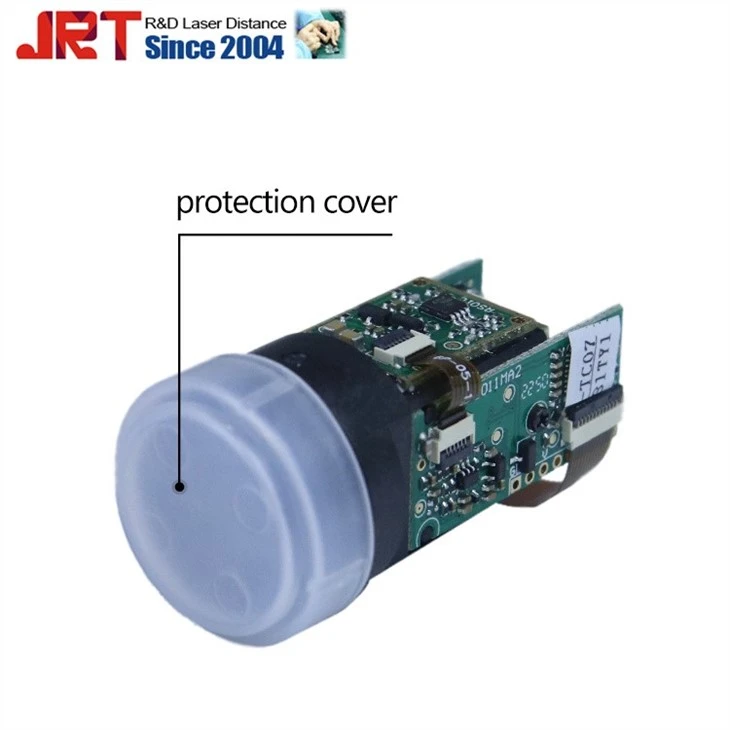

1500m Measuring Sensor Lens Protection:
Laser ranging telescope lens protection is a shell used to protect the lens of a laser ranging telescope. The case is made of hard plastic and effectively protects the surface of the telescope lens from scratching, abrasion and damage. In addition, the protective shell can also resist the erosion of external environmental factors such as water, sand and dust, to protect the telescope lens in the best condition for a long time, extending the service life.
Note:
1. Under poor measurement conditions (such as the ambient light is too strong, the measured point diffuse reflection coefficient is too large or too small), the measurement accuracy will have a large error: ± 3mm +40PPM.
2. In the case of strong sunlight or poor reflection of the target, please use the reflector plate.
3. If the working temperature range is -10 C° ~ 50 C°, it needs to be specially customized.

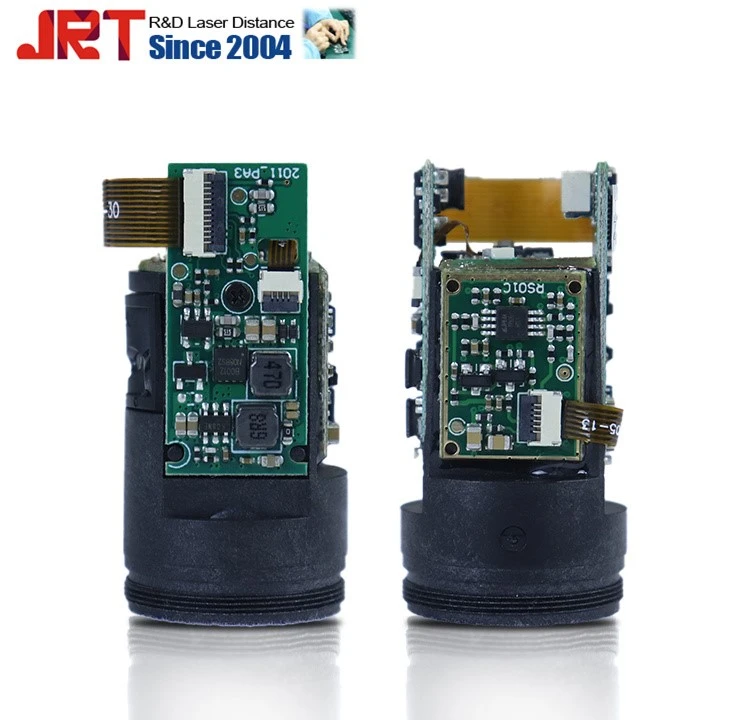

1500m Measuring Sensor Front & Back:
It has the characteristics of high ranging accuracy, fast ranging speed, high working reliability and strong adaptability. It has a very wide range of applications.
1500m Measuring Sensor Application Scenarios:
1Gun Sight/Hunting:Laser ranging can help shooters accurately measure the distance of a target, so that they can choose which weapon to use according to the distance, or adjust it so that the bullet hits the target with as little deviation as possible.
2Night Vision:The laser night vision device transmits lasers, collects reflected light, converts the reflected light into electrical signals, and then converts the signals into images to observe the surrounding environment under low light conditions.
