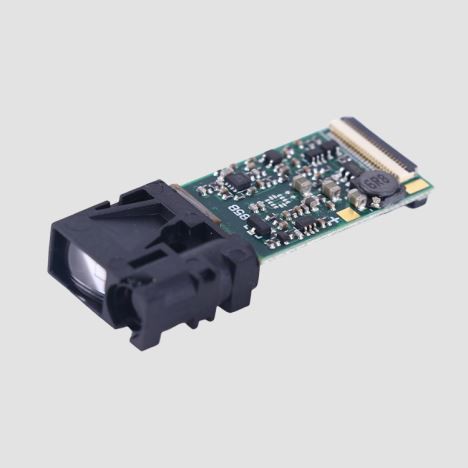

400m Laser Sensor Arduino

400M high-performance laser sensor arduino outdoor
JRT PTFS700 distance measurement sensors modules have 3~400M range with 0.1 resolution, its maximum single measurement time: ~1s, which means you can collect the date easy and fast. Normally, PTFS700 laser module can support you working at 0-50 ℃，if you need to custom temperature,please contact us. Besides it is TTL output, but we can provide you RS485 or RS232 as you need, we will try our best to help you. Let' s have a detail chatting.

Range: 3-400m
Absolute Accuracy: +/-0.5m
Blind Area: 3m
Maximum Single Measurement Time: ~1s
Resolution: 0.1m
Light:905nm laser, class II
Voltage: DC +3.3V
Current: 100mA
Power: 330mW@3.3V
Operating Temperature: 0~50℃
Serial level: TTL 3.3V
Volume: 43*35*21mm
Weight: ~30 g

Note:
1. Before using the sensor, please ensure that the surface of the sensor and the target is clean and there is no shelter.
2. Do not direct laser light at human eyes to avoid eye injury.
3. In the process of storage and use, do not suffer from strong vibration and vibration.

Using outdoor laser sensor can help players measure distances quickly and accurately during a game. By measuring the distance between the ball and the target, players can adjust their shots and choose the most suitable club, thus improving their accuracy and success rate.

Product name: 400m laser sensor
Product package list:
- One 400m laser sensor
- 1 USB data cable
- 1 user manual

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.

For more info, please feel free to contact us
