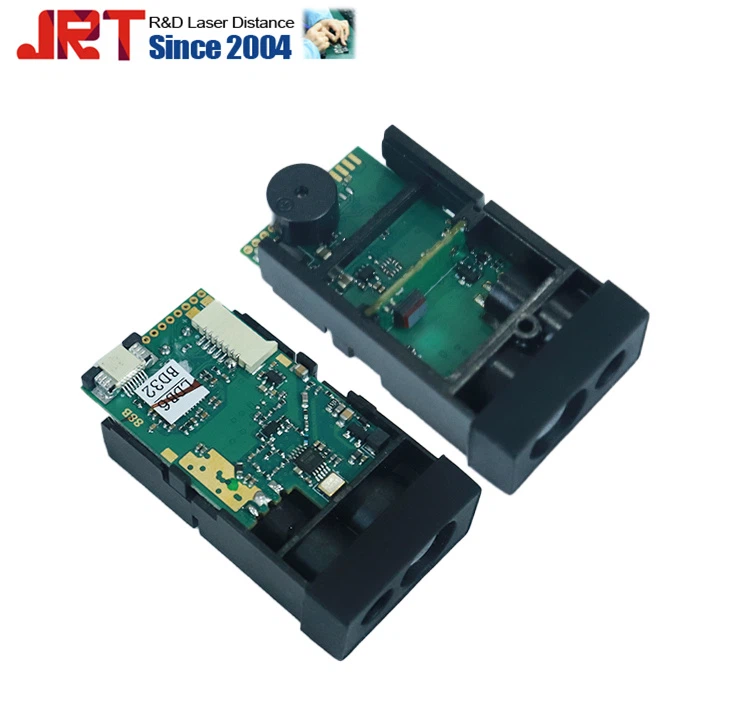

50m Digital Sensor
Digital Sensor Model: MB2D43(k230327-5)
Measuring Range：0.03-50m
Measuring Time：0.3-4 seconds
Output: CMOS/UART
Size：45*25*12mm,easy to mount
Operating Temperature：0 C°～40 C°
Freqency: 3 Hz
50m Precise Digital Sensor Laser Ranging Device TTL

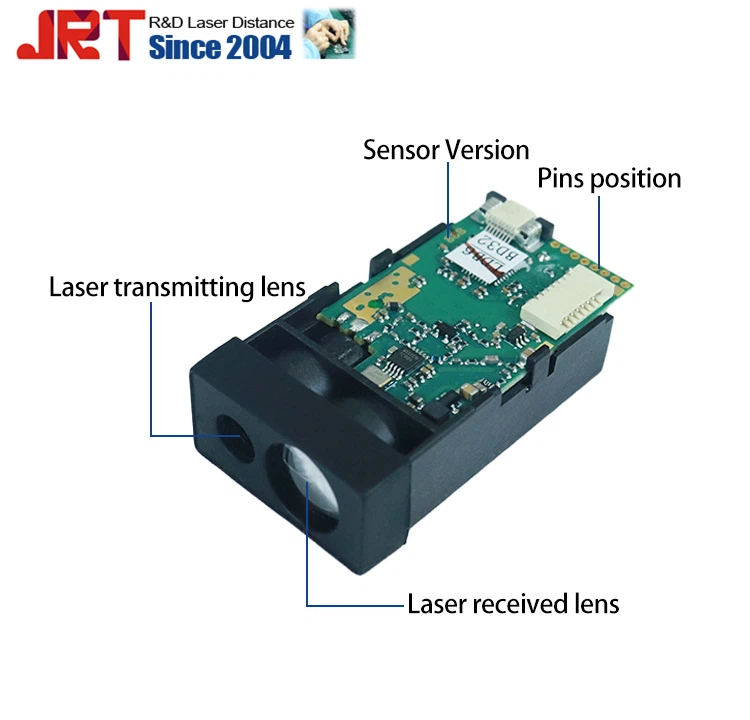

The MB2D43 model is a Laser Measuring Meter module, with accuracy of 1mm and range of 50m. The sensor is popular in the middle range measurement like 40m/60m. It can measure up to 3Hz frequency, and the working voltage is 2.5V-3.3V. Different interfaces like TTL,USB, RS232, RS485 and Blutooth are available for many connections, which can be secondary developed and easily integrated in your system.Importantly, we can also provide technical support and service after you buying, such as how to test, how to integrate and how to seal the module in your system.
Precise Device for 50m long range
Note:
1. Under poor measurement conditions (such as the ambient light is too strong, the measured point diffuse reflection coefficient is too large or too small), the measurement accuracy will have a large error of ±1mm+40PPM.
2. Use target in cases of strong sunlight or poor target reflection.
3. If the working range needs -10 C° ~ 50 C°, it needs to be specially customized.
Product specification:
Range: 0.03m -50m
Visible laser: 620-690nm
Measuring accuracy: ±1mm
Resolution:1mm
Laser type: Class 2
Interface options: TTL,USB,RS232,RS485,Bluetooth
Weight: 9g
Input voltage: 2.5-3.3V
Measuring time: 0.4-4s
Working temperature: 0-40 degree
Storage temperature: -25~ 60 degree

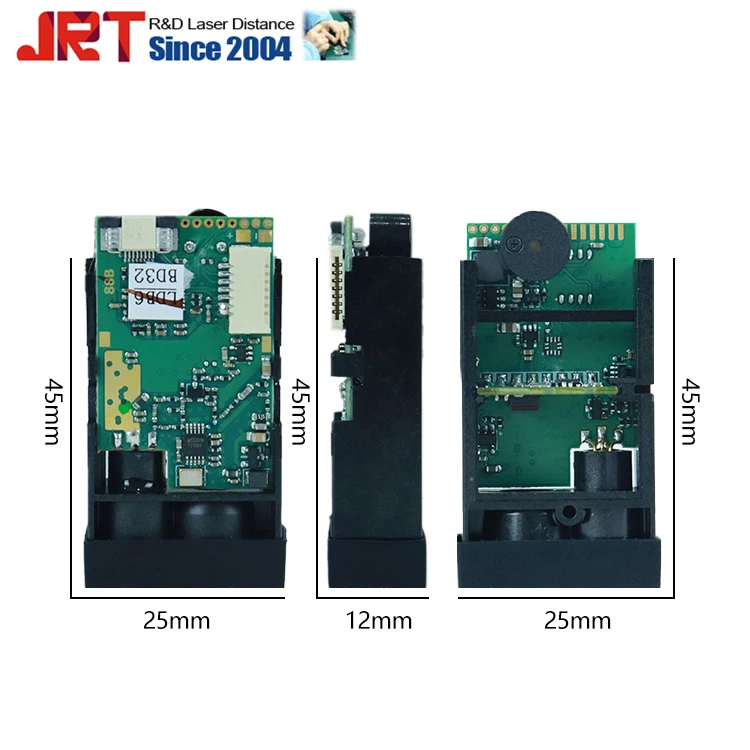

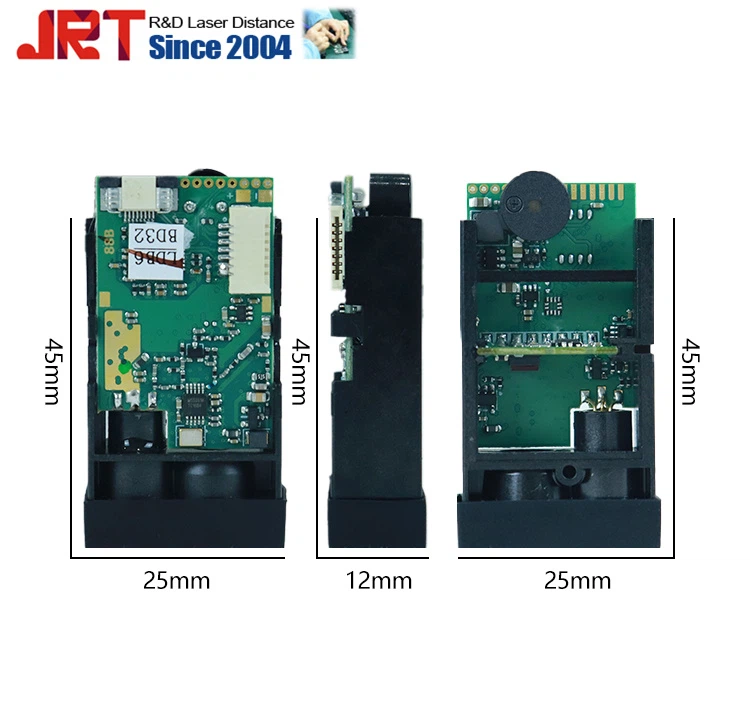

50m Distance Digital Sensor Front & Back:

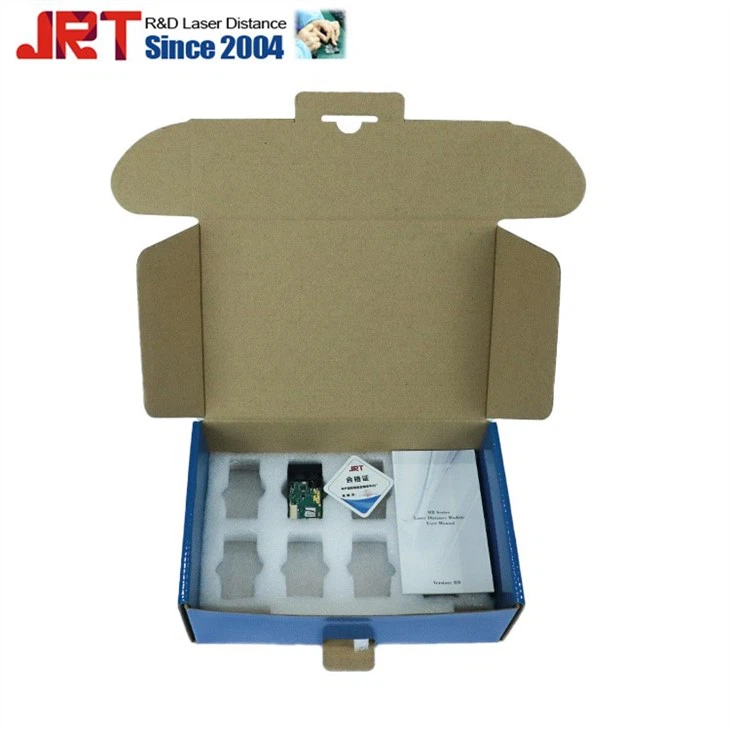

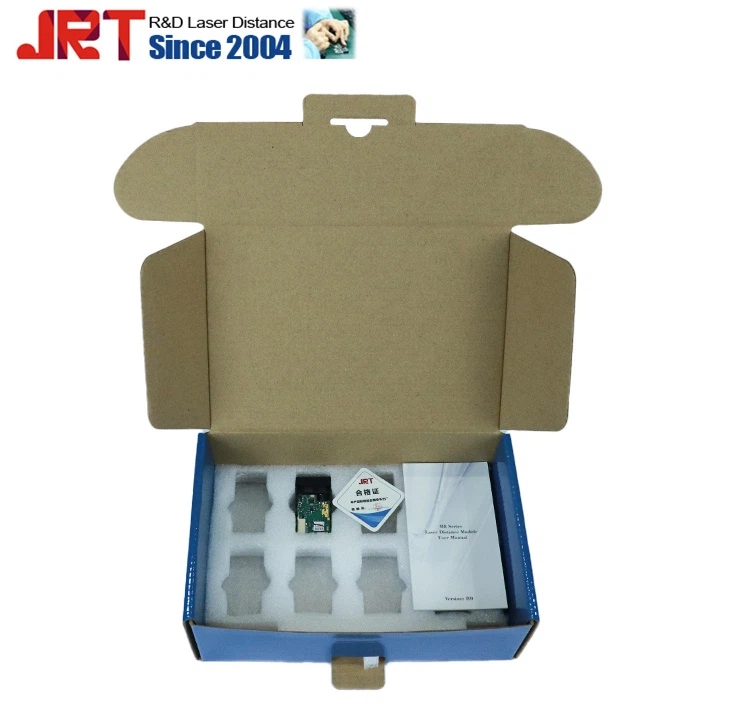

Precise Laser Ranging Sensor Packing
① Digital Sensor Laser Ranging Device before leaving the factory, check all the electronic parts of the product to test whether the electronic parts can be used and installed normally.
② In the packaging of products, special parts, separate packaging and special packaging treatment.
③ Packing method: carton packing
④ If you need OEM and ODM services, there are separate product packaging schemes and logo printing standards, please contact us in advance of your schemes and standards. We can pack the products according to your requirement.
Application fields
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
For more info, please feel free to contact us
