20m RS485 Radar Distance Sensor
Product Number：U85-20m(k208251)
Brand Name: JRT/OEM
Product Category：high accuracy distance module
Accuracy：+/-1mm
Measuring range：0.03-20m
Weight: about 4g
Advantages: This laser measurement sensor, with small size(41*17*7mm), easy to integrate installation; In addition, this ranging sensor supports RS485 communication, transmission distance up to hundred meters. So that if outdoor project, customers usually chose the RS-485 interface.
20m RS485 radar distance sensor
Product Advantages: This laser measurement sensor, with small size(41*17*7mm), easy to integrate installation; In addition, this ranging sensor supports RS485 communication, transmission distance up to hundred meters. So that if outdoor project, customers usually chose the RS-485 interface.
Product Description:
U85 distance sensor is the update version of U81, it can measure short range of 20 meters. It's a good choice for outdoor using according to the transmission distance up to 80m. So custoemrs usually choose for forklift monitoring，oil exploration surveying etc.. Welcome to contact us for more.
20m Laser Distance Sensor Highlight:
1. +-1mm High Accuracy
2. RS485 with transmission distance up to 80m.
Specifications of Laser Distance Sensor:
Production Number | U85-20m(k208251) |
Certification | FDA/ISO9001 |
Place of Origin | Chengdu,Sichuan |
Precision Accuracy | ±1 mm |
Measuring Unit | mm |
Measuring Distance (without Reflection) | 0.03-20 meters |
Measuring Time | 0.3~4 seconds |
Laser Class | Class II |
Laser Type | 620-690nm, 1mW |
Volume | 41*17*7mm (±1 mm) |
Weight | About 4g |
Power supply voltage | DC2.0~3.3V |
Electrical Level | TTL/CMOS |
Frequency | 3HZ |
Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
Storage Temperature | -25~60 ℃ (-13~140 ℉) |

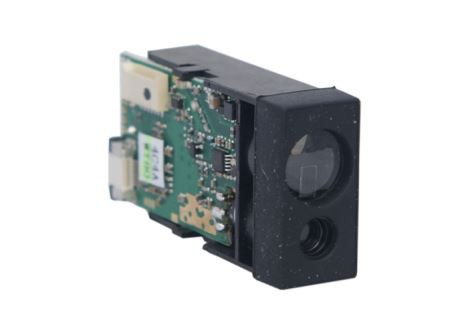

Product picture
RS485 radar distance sensor dailed picture
FAQ for purchasing manager:
1. Q: Can you provide us the specifications and quotations of the radar distance sensor?
A: Sure, please contact us for more detailed info and quotes.
2. Q: How long can I receive the radar distance sensor?
A: Normally, customers can get the sensor package within 7 working days.
Factory picture
Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor, Laser Distance Meter Sensor, Long Rangefinder Module, TOF High Frequency LiDAR Sensor.
For more info, please feel free to contact us
