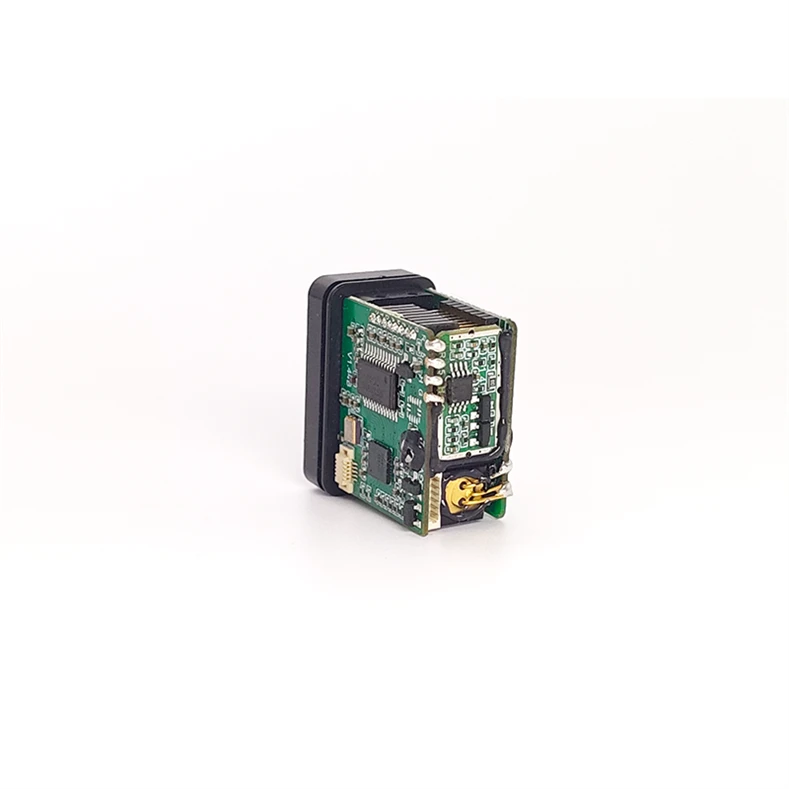

1200m Laser Rangefinder Module

1200m Laser Rangefinder Module
The 1200m laser rangefinder module is a type of miniature photoelectric sensor used for precise distance measurement. The PTGS-12X laser range finder sensor typically utilizes a 905nm laser and-of-Flight (ToF) principle, and is widely used in fields such as drones, handheld devices, security monitoring, and industrial measurement. Its core features are small, low power consumption, and ease of integration, and it complies with the Class 1 eye safety standard.

If you need order samples for testing, please contact us: jane.l@jrt-measure.com. or WeChat: 0086-17708191805.

Typical Product Parameters:
Ranging Distance: 1200m (70% reflectivity)
Ranging Accuracy: ±1m
Measurement Frequency: 1Hz-3Hz
Eye Safety Rating: Class 1
Interface: UART (9600bps/115200bps)
Power Supply: DC 3.3V
Weight: 12g
Dimensions: 14.5*25*26mm

If you have any other requirements (such as interface types), please let us know: jane.l@jrt-measure.com. or WeChat: 0086-17708191805., and I can help you select a more suitable model.

Order Now!

Technical Parameters:
Laser wavelength: 905nm
Measuring range: 5m-1200m
Measuring accuracy: 5≤L≤100m:±0.7m
L＞100m:±(0.7 L*0.4%)m
Display accuracy: 0.1m
Measuring frequency: 1-3Hz
Accuracy rate: ≥98% (10-400)m;
≥80% (401-1200)m
Divergence angle: ≤10mrad
Communication interface: UART-TTL(3.3V)
Baud rate: 9600/115200bps optional
Startup time: ≤550ms
Working voltage: 3.3 /-0.1V
Working power consumption: ≤1.5W
Standby power consumption: ≤350mW
Dimension: 14.5mmx25mmx26mm
Weight: ≤12g
Working temperature: -20℃-50℃
Storage temperature: -45℃-70℃
Protection level: IP67(head plate)
Impact resistance level: 1000g/ms(10 times/s optical axis direction)
ESD level: (lens position)
Contact discharge 6kV
Air discharge 8kV
Safety regulations: IEC:60825-1 Class I
Electromagnetic compatibility: Complies with CE/FCC certification
Environmental protection: RoHS2.0
Communication: UART-TTL interface

For more projects suggestions, welcome contact us: jane.l@jrt-measure.com. or WeChat: 0086-17708191805.

For more, welcome contact us: jane.l@jrt-measure.com. or WeChat: 0086-17708191805.

Chengdu JRT Main Ranging Sensors: Industrial Laser Distance Sensor,1535nm Rangefinder Module, TOF High Frequency LiDAR Sensor.
